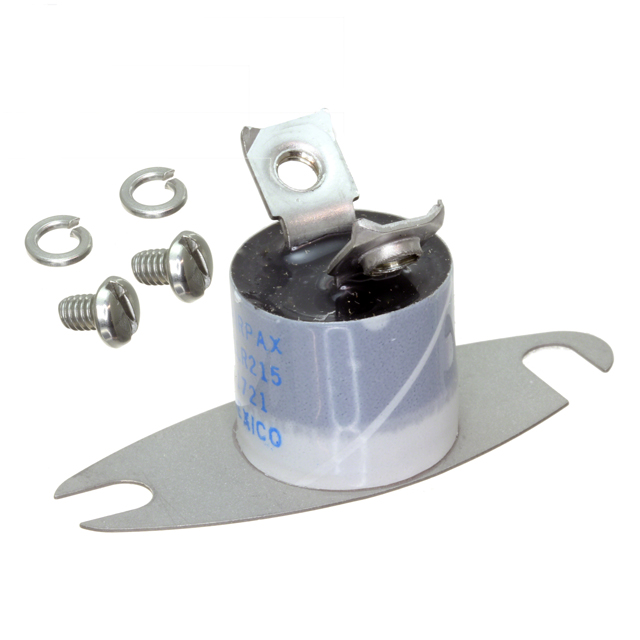

011JG200A-175Y

Active

Sensata Technologies

THERMOSTAT 93DEG C SPST-NC CYL

Search across all available documentation for this part.

Active

Sensata Technologies

THERMOSTAT 93DEG C SPST-NC CYL

Technical Specifications

Parameters and characteristics for this part

Specification	011JG200A-175Y

Circuit	SPST-NC
Current Rating - AC	3 A
Current Rating - AC	2 A
Current Rating - DC	3 A
Mounting Type	Chassis Mount
Package / Case	Cylinder with Mounting Flange
Switching Cycles	100000
Switching Temperature	200 °F
Switching Temperature	93 °C
Termination Style	Screw Terminal
Tolerance	5 °F

THERMOSTAT 93DEG C SPST-NC CYL

Part	Mounting Type	Termination Style	Tolerance	Switching Temperature	Switching Temperature	Switching Cycles	Current Rating - DC	Package / Case	Current Rating - AC	Current Rating - AC	Circuit
Sensata Technologies 011JG200A-175Y	Chassis Mount	Screw Terminal	5 °F	200 °F	93 °C	100000	3 A	Cylinder with Mounting Flange	3 A	2 A	SPST-NC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

THERMOSTAT 93DEG C SPST-NC CYL

Technical documentation and resources

No documents available
