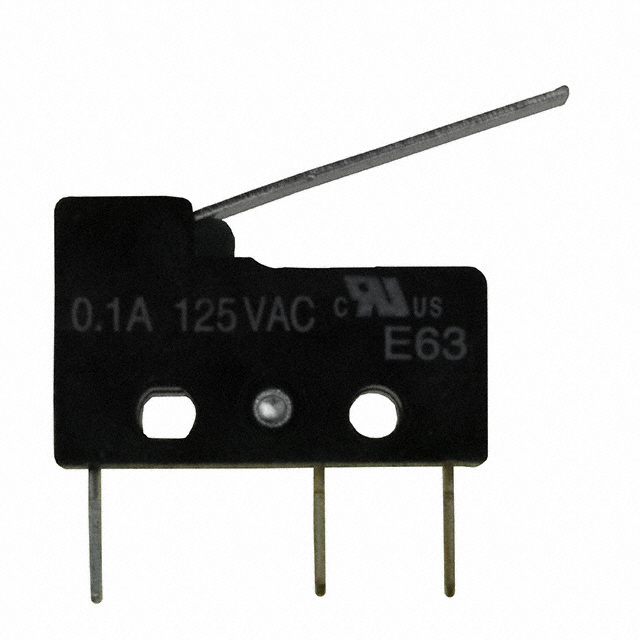

E63-50H
ObsoleteZF Electronics
SWITCH SNAP ACT SPDT 0.1A 125V
E63-50H
ObsoleteZF Electronics
SWITCH SNAP ACT SPDT 0.1A 125V
Description
General part information
E63-50H
Switch SPDT Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | E63-50H |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating | 250 mA, 100 mA |
| Differential Travel (Linear) | 0.05 in |
| Electrical Life (Cycles) | 6000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 9 gf |
| Operating Position (Length) | 0.35 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overtravel (Linear) | 0.05 in |
| Pretravel (Length) | 0.416 in |
| Switch Function | On-Mom |
| Termination Length | 0.093 in |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
