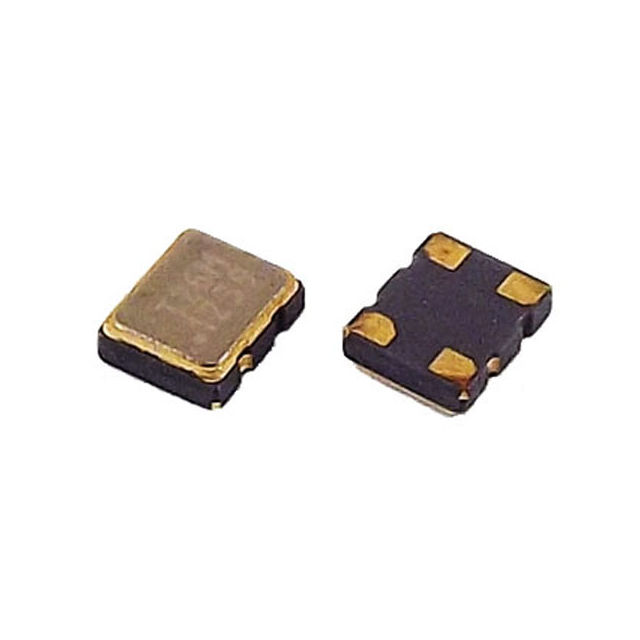

TX8-N05OP-26.000M
ActiveTransko Electronics, Inc.
OSC TCXO 26.0000MHZ SNWV SMD
TX8-N05OP-26.000M
ActiveTransko Electronics, Inc.
OSC TCXO 26.0000MHZ SNWV SMD
Description
General part information
TX8-N05OP-26.000M
26 MHz TCXO Clipped Sine Wave Oscillator 1.8V 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | TX8-N05OP-26.000M |
|---|---|
| Current - Supply (Max) | 1.5 mA |
| Frequency | 26 MHz |
| Frequency Stability | 0.5 ppm |
| Height - Seated (Max) | 0.029 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -30 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | TCXO |
| Voltage - Supply | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
