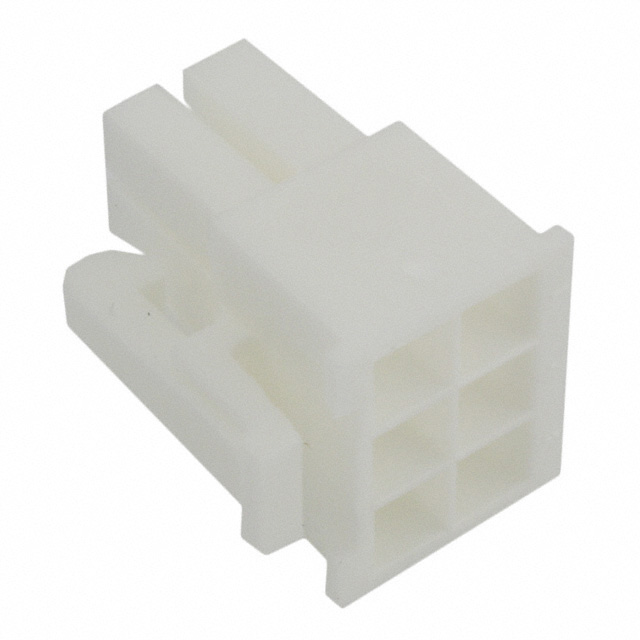

794657-6

Obsolete

TE Connectivity AMP Connectors

CONN RCPT HSG 6POS 4.20MM

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN RCPT HSG 6POS 4.20MM

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN RCPT HSG 20POS 4.20MM

Part	Mounting Type	Color	Number of Positions	Note	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Contact Termination	Row Spacing	Row Spacing	Fastening Type	Contact Type
TE Connectivity AMP Connectors 2-794657-0	Free Hanging (In-Line)	Natural	20	Contacts Not Included	4.2 mm	0.165 in	Receptacle	2	Crimp	4.2 mm	0.165 in	Latch Lock	Female Socket
TE Connectivity AMP Connectors 2-794657-2	Free Hanging (In-Line)	Natural	22 positions	Contacts Not Included	4.2 mm	0.165 in	Receptacle	2	Crimp	4.2 mm	0.165 in	Latch Lock	Female Socket
TE Connectivity AMP Connectors 794657-2	Free Hanging (In-Line)	Natural	2	Contacts Not Included			Receptacle	2	Crimp	4.2 mm	0.165 in	Latch Lock	Female Socket
TE Connectivity AMP Connectors 794657-4	Free Hanging (In-Line)	Natural	4	Contacts Not Included	4.2 mm	0.165 in	Receptacle	2	Crimp	4.2 mm	0.165 in	Latch Lock	Female Socket
TE Connectivity AMP Connectors 1-794657-0	Free Hanging (In-Line)	Natural	10	Contacts Not Included	4.2 mm	0.165 in	Receptacle	2	Crimp	4.2 mm	0.165 in	Latch Lock	Female Socket
TE Connectivity AMP Connectors 794657-6	Free Hanging (In-Line)	Natural	6	Contacts Not Included	4.2 mm	0.165 in	Receptacle	2	Crimp	4.2 mm	0.165 in	Latch Lock	Female Socket
TE Connectivity AMP Connectors 2-794657-4	Free Hanging (In-Line)	Natural	24	Contacts Not Included	4.2 mm	0.165 in	Receptacle	2	Crimp	4.2 mm	0.165 in	Latch Lock	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 Rectangular Connectors - Housings Receptacle Natural 0.165" (4.20mm)

Technical documentation and resources
