SSI-LXH8080GD

Active

Lumex Opto/Components Inc.

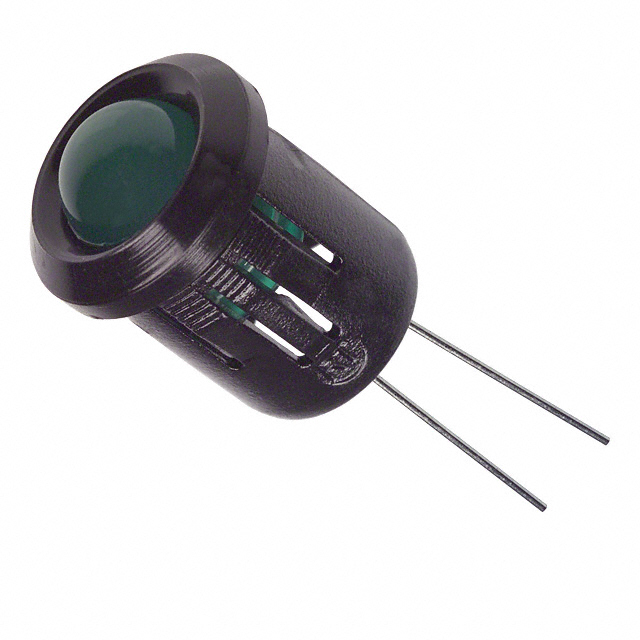

LED 8MM GREEN DIFF PANEL MOUNT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 8MM GREEN DIFF PANEL MOUNT

Technical Specifications

Parameters and characteristics commom to parts in this series

LED 8MM SUPER RED DIFF PANEL MNT

Part	Voltage	Panel Cutout Shape	Current	Lamp Color	Lens Transparency	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Size [diameter]	Lens Style	Viewing Angle	Type	Lens Color	Millicandela Rating	Wavelength - Peak
Lumex Opto/Components Inc. SSI-LXH8080SRD	1.7 V	Round	30 mA	Red	Diffused	0.47 in	11.94 mm	8 mm	Round with Domed Top	60 °	LED	Red	80 mcd	660 nm
Lumex Opto/Components Inc. SSI-LXH8080ID	2 V	Round	30 mA	Red	Diffused	0.47 in	11.94 mm	8 mm	Round with Domed Top	60 °	LED	Red	40 mcd	635 nm
Lumex Opto/Components Inc. SSI-LXH8080GD	2.2 V	Round	25 mA	Green	Diffused	0.47 in	11.94 mm	8 mm	Round with Domed Top	60 °	LED	Green	30 mcd	565 nm
Lumex Opto/Components Inc. SSI-LXH8080YD	2.1 V	Round	30 mA	Yellow	Diffused	0.47 in	11.94 mm	8 mm	Round with Domed Top	60 °	LED	Yellow	30 mcd	585 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Panel Indicator Green Diffused 60° 2.2V 25mA

Technical documentation and resources

No documents available
