Technical Specifications
Parameters and characteristics for this part
| Specification | M83723/74A1412N |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Positions | 12 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Qualification | MIL-DTL-83723 Series III |
| Shell Finish | Black Anodized |
| Shell Material | Aluminum |
| Shell Size - Insert Length | 14 mm |
| Shell Size - Insert Width | 12 mm |
| Shell Size (MIL) | D |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 249.93 | <6d |
| 10 | $ 212.98 | |||
| 50 | $ 208.72 | |||
| 100 | $ 204.55 | |||
| 500 | $ 200.46 | |||
CAD
3D models and CAD resources for this part
Description
General part information

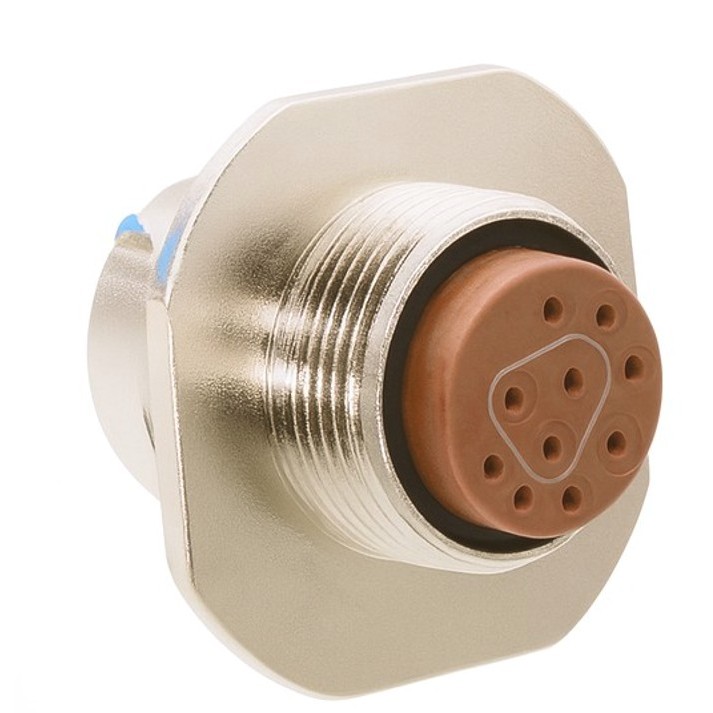

M83723/74A1412N
RECEPTACLE WITH BACKSHELL
