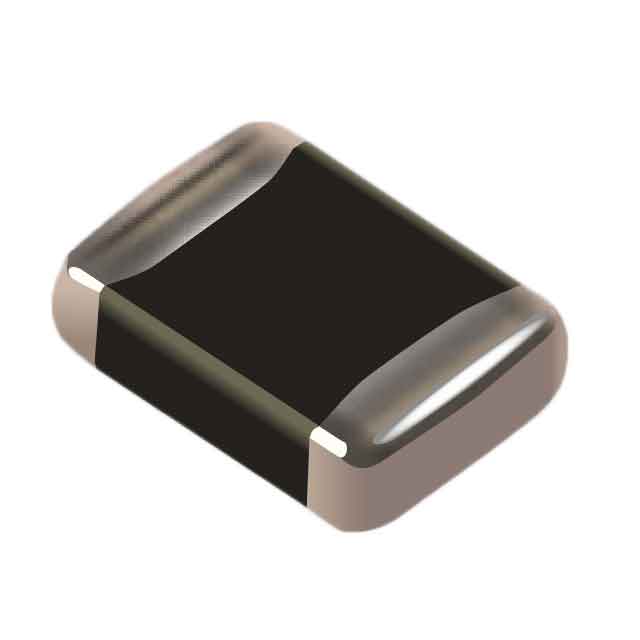

ZV4M1812501NIR1

Active

Bourns Inc.

VARISTOR 4 M 1812 501 NI R1

Search across all available documentation for this part.

Active

Bourns Inc.

VARISTOR 4 M 1812 501 NI R1

Technical Specifications

Parameters and characteristics commom to parts in this series

VARISTOR 4 M 1210 251 NI R1 HT

Part	Capacitance @ Frequency	Energy	Operating Temperature [Min]	Operating Temperature [Max]	Maximum DC Volts [Max]	Varistor Voltage (Max) [Max]	Varistor Voltage (Min) [Min]	Current - Surge	Number of Circuits	Varistor Voltage (Typ)	Package / Case	Package / Case	Mounting Type	Maximum AC Volts [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Bourns Inc. ZV4M1210251NIR1HT	5000 pF	0.4 J	-55 °C	150 °C	5.5 V	9.6 V	6.4 V	250 A	1	8 V	1210	3225 Metric	Surface Mount, MLCV	4 V
Bourns Inc. ZV4M1210251NIR1	5000 pF	0.4 J			5.5 V	9.6 V	6.4 V	250 A	1	8 V	1210	3225 Metric	Surface Mount, MLCV	4 V	125 °C	-55 °C
Bourns Inc. ZV4M0603300NIR1	295 pF	0.1 J			5.5 V	9.6 V	6.4 V	30 A	1	8 V	0603 (1608 Metric)		Surface Mount, MLCV	4 V	125 °C	-55 °C
Bourns Inc. ZV4M1206151NIR1	3300 pF	0.3 J			5.5 V	9.6 V	6.4 V	150 A	1	8 V	1206 (3216 Metric)		Surface Mount, MLCV	4 V	125 °C	-55 °C
Bourns Inc. ZV4M0805101NIR1	695 pF	0.1 J			5.5 V	9.6 V	6.4 V	100 A	1	8 V	0805		Surface Mount, MLCV	4 V	125 °C	-55 °C
Bourns Inc. ZV4M1812501NIR1	10000 pF	0.8 J			5.5 V	9.6 V	6.4 V	500 A	1	8 V	1812 (4532 Metric)		Surface Mount, MLCV	4 V	125 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	6000	$ 0.23

General part information

8 V 500 A Varistor 1 Circuit Surface Mount, MLCV 1812 (4532 Metric)
