61549-2
ActiveTE Connectivity AMP Connectors

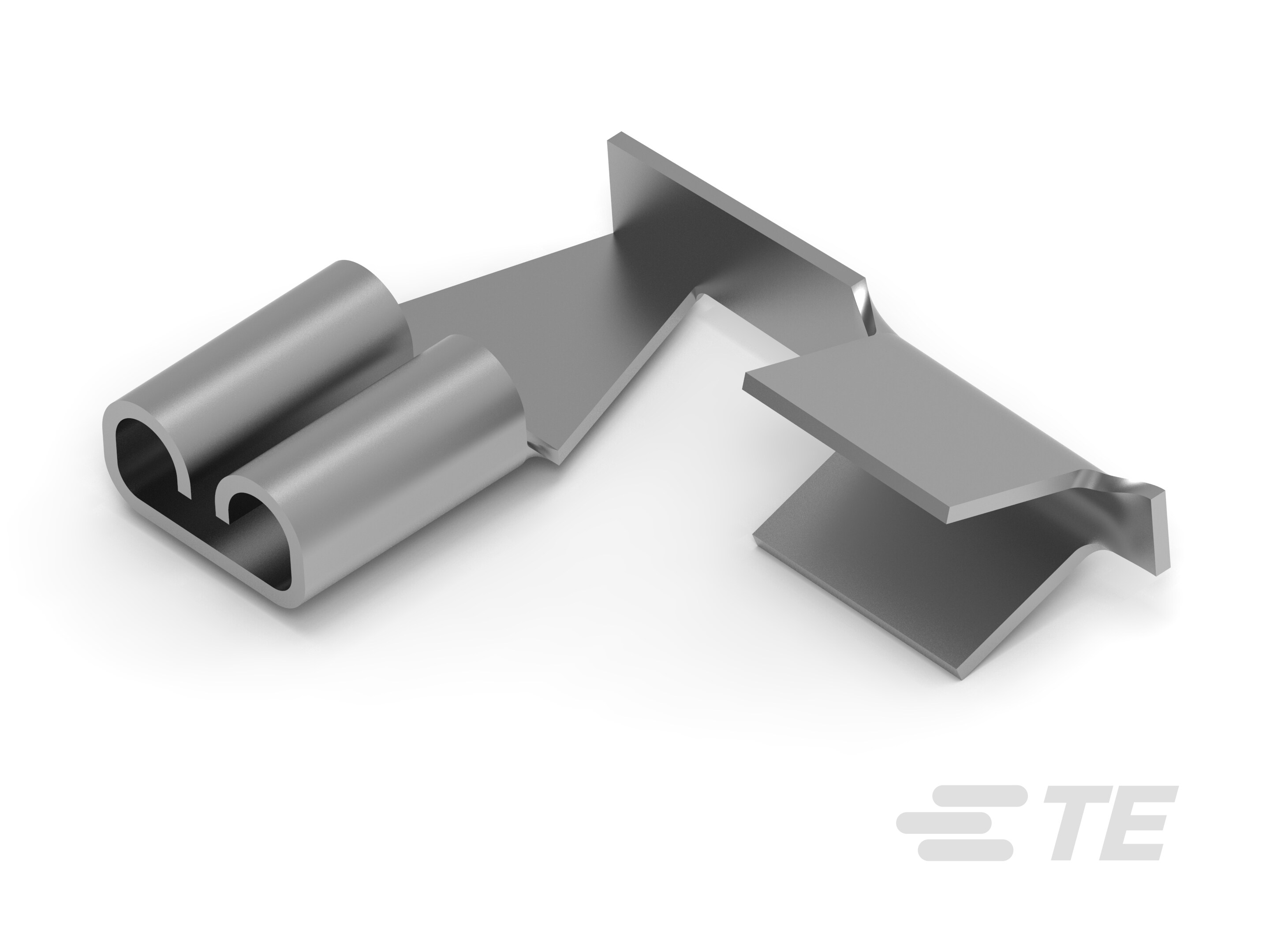

110 FASTON FLAG REC 22-16 AWG TPBR
61549-2
ActiveTE Connectivity AMP Connectors
110 FASTON FLAG REC 22-16 AWG TPBR
Description
General part information
FASTON 110 Series
Quick Disconnect Receptacle, 22 – 16 AWG, .32 – 1.31 mm² Wire, 600 – 3000 CMA, 2.8 mm [.11 in] Tab Width, Flag, Brass, Tin Plating, FASTON 110
Technical Specifications
Parameters and characteristics for this part
| Specification | 61549-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.15 in |
| Tab Thickness | 0.02 in |
| Tab Width | 0.11 in |
| Terminal Angle | 90 ° |
| Terminal Type | Flag, Angled |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
