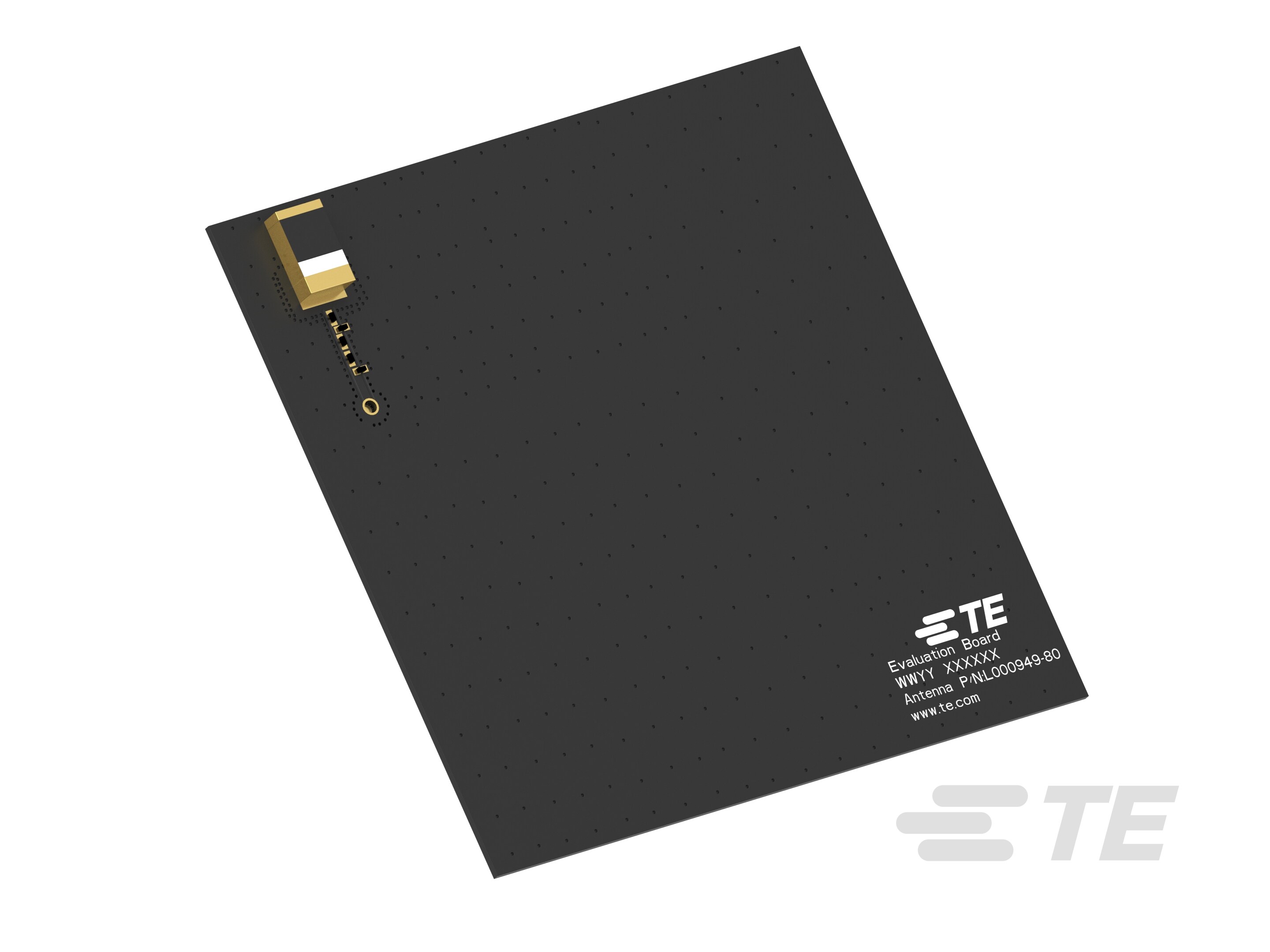

ANT WITH EVB ASSY, 2.4+5GHZ,DUAL WI-FI
L000949-80
ActiveTE Connectivity AMP Connectors
ANT WITH EVB ASSY, 2.4+5GHZ,DUAL WI-FI
Description
General part information
L000949-80
Chip Antenna, Single Band, Wi-Fi, Internal/Embedded Mount, Surface Mount, SMD, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | L000949-80 |
|---|---|
| Antenna Type | Chip |
| Applications | Wi-Fi, Zigbee™, Bluetooth, 802.11a/b/g/n/ac, WLAN |
| Frequency (Band) | 5.5 GHz |
| Frequency (Center) | 2.442 GHz |
| Frequency Group | SHF, UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Band 1) Maximum | 2.484 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 5.85 GHz |
| Frequency Range (Band 2) Minimum | 5.15 GHz |
| Gain | 1.3 dBi, 1.34 dBi |
| Height (Max) | 0.118 in |
| Mounting Type | Surface Mount |
| Number of Bands | 2 |
| RF Family/Standard | WiFi, Bluetooth |
| Termination | Solder |
| VSWR | 3 |
