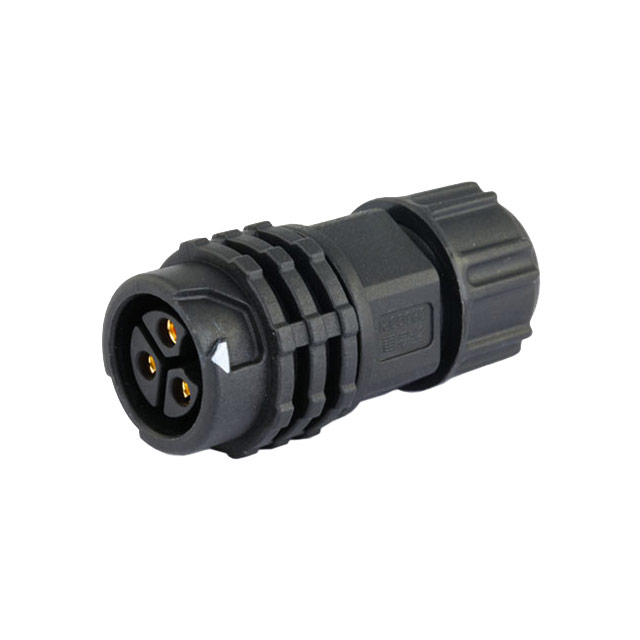

Specification	23003431-02

Applications	Industrial, Marine, Lighting, Communication Systems
Backshell Material, Plating	Nylon 6/6, Polyamide (PA66)
Cable Opening (Max)	0.374 in
Cable Opening (Min)	0.256 in
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass, Phosphor Bronze
Current Rating	20 A
Fastening Type	Push-Twist
Features	Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Polyamide, Nylon 6/6, PA66
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-45 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating	300 VAC/DC
