STDCZS2-26M
ActiveNDK (NIHON DEMPA KOGYO CO., LTD)
CRYSTAL 26.0000MHZ 8PF SMD
STDCZS2-26M
ActiveNDK (NIHON DEMPA KOGYO CO., LTD)
CRYSTAL 26.0000MHZ 8PF SMD
Description
General part information
STDCZS2-26M
26 MHz ±15ppm Crystal 8pF 60 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | STDCZS2-26M |
|---|---|
| ESR (Equivalent Series Resistance) | 60 Ohm |
| Frequency | 26 MHz |
| Frequency Stability | 25 ppm |
| Frequency Tolerance | 15 ppm |
| Height - Seated (Max) | 0.02 in |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |

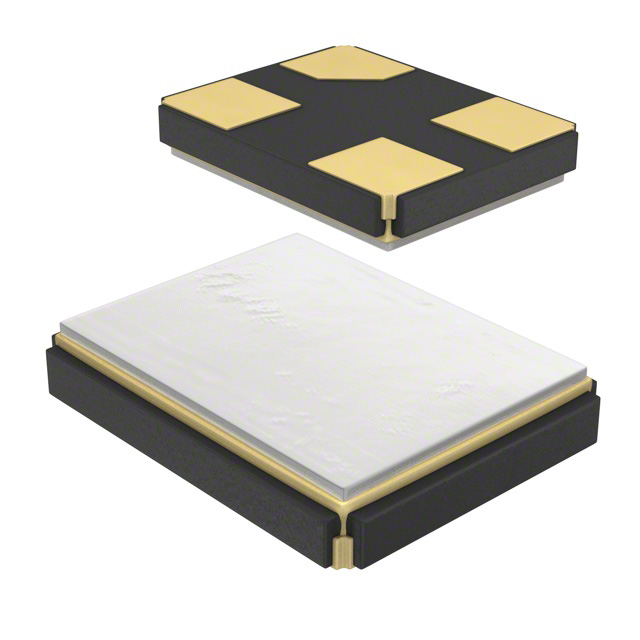

| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.063 in |
| Type | MHz Crystal |
