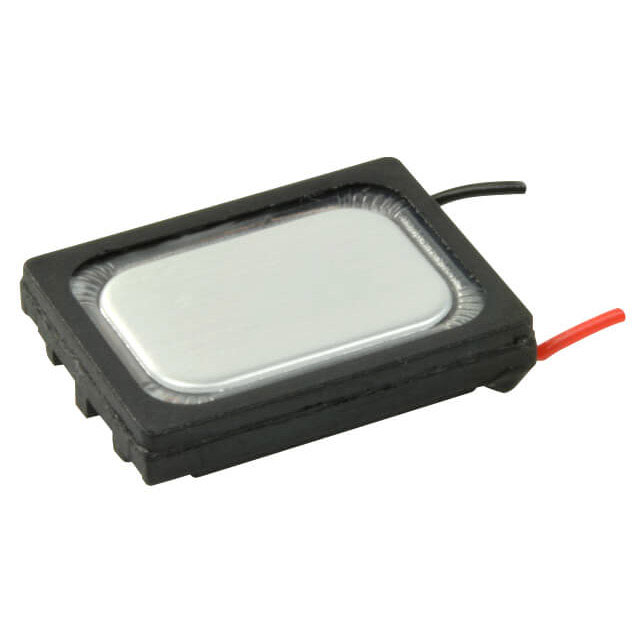

Specification	CMS-151125-076L100

Efficiency - dBA	92.5 dBA
Efficiency - Testing Length	100 mm
Efficiency - Testing Power	700 mW
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	550 Hz
Frequency Range (Max)	20 kHz
Frequency Range (Min)	100 Hz
Height - Seated (Max)	0.098 in
Impedance	6 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Max	1 VA
Power - Rated	700 mW
Shape	Rectangular
Size / Dimension Length	0.591 in
Size / Dimension Width	0.433 in
Technology	Magnetic
Termination	Wire Leads
Type	General Purpose

CMS-151 Series

...

Part	Efficiency - dBA	Shape	Impedance	Power - Max	Height - Seated (Max)	Power - Rated	Material - Magnet	Size / Dimension Width	Size / Dimension Length	Frequency - Self Resonant	Type	Technology	Port Location	Termination	Efficiency - Testing Power	Efficiency - Testing Length	Frequency Range (Min)	Frequency Range (Max)	Material - Cone	Efficiency - Type	Ingress Protection Description	Ingress Protection IP Rating	Operating Temperature (Max)	Operating Temperature (Min)
Same Sky (Formerly CUI Devices) CMS-151103-088SP	90 dBA	Rectangular	8 Ohm	1 VA	0.118 in	700 mW	Nd-Fe-B	0.433 in	0.591 in	550 Hz	General Purpose	Magnetic	Top	Solder Pads	700 mW	100 mm	100 Hz	20 kHz	Polyetheretherketone (PEEK)	Sound Pressure Level (SPL)
Same Sky (Formerly CUI Devices) CMS-151125-078L100A-67	91 dBA	Rectangular	8 Ohm	1 VA	0.098 in	700 mW	Nd-Fe-B	0.433 in	0.591 in	700 Hz	General Purpose	Magnetic	Top	Wire Leads with Connector	700 mW	100 mm	100 Hz	20 kHz	Polyester Polyethylene Terephthalate (PET)	Sound Pressure Level (SPL)	Dust Tight Waterproof	IP67
Same Sky (Formerly CUI Devices) CMS-15113-078L100B-67	91 dBA	Rectangular	8 Ohm	1 VA	0.118 in	700 mW	Nd-Fe-B	0.433 in	0.591 in	700 Hz	General Purpose	Magnetic	Top	Wire Leads with Connector	700 mW	100 mm	100 Hz	20 kHz	Polyester Polyethylene Terephthalate (PET)	Sound Pressure Level (SPL)	Dust Tight Waterproof	IP67
Same Sky (Formerly CUI Devices) CMS-151125-078L100A	91 dBA	Rectangular	8 Ohm	1 VA	0.098 in	700 mW	Nd-Fe-B	0.433 in	0.591 in	700 Hz	General Purpose	Magnetic	Top	Wire Leads with Connector	700 mW	100 mm	100 Hz	20 kHz	Polyester Polyethylene Terephthalate (PET)	Sound Pressure Level (SPL)			70 °C	-20 °C
Same Sky (Formerly CUI Devices) CMS-151125-076L100A-67	92.5 dBA	Rectangular	6 Ohms	1 VA	0.098 in	700 mW	Nd-Fe-B	0.433 in	0.591 in	550 Hz	General Purpose	Magnetic	Top	Wire Leads with Connector	700 mW	100 mm	100 Hz	20 kHz	Polyester Polyethylene Terephthalate (PET)	Sound Pressure Level (SPL)	Dust Tight Waterproof	IP67	70 °C	-20 °C
Same Sky (Formerly CUI Devices) CMS-151135-076L100B	92 dBA	Rectangular	6 Ohms	1 VA	0.138 in	700 mW	Nd-Fe-B	0.433 in	0.591 in	600 Hz	General Purpose	Magnetic	Top	Wire Leads with Connector	700 mW	100 mm	100 Hz	20 kHz	Polyester Polyethylene Terephthalate (PET)	Sound Pressure Level (SPL)
Same Sky (Formerly CUI Devices) CMS-151135-076S-67	92 dBA	Rectangular	6 Ohms	1 VA	0.138 in	700 mW	Nd-Fe-B	0.433 in	0.591 in	600 Hz	General Purpose	Magnetic	Top	Spring Type	700 mW	100 mm	100 Hz	20 kHz	Polyester Polyethylene Terephthalate (PET)	Sound Pressure Level (SPL)	Dust Tight Waterproof	IP67
Same Sky (Formerly CUI Devices) CMS-15118E-SP	90.5 dBA	Rectangular	8 Ohm	1 VA	0.098 in	0.8 W	Nd-Fe-B	0.433 in	0.591 in	550 Hz	Low Profile	Magnetic	Top	Spring Type	800 mW	100 mm	440 Hz	10 kHz	Polyester Polyethylene Terephthalate (PET)	Sound Pressure Level (SPL)
Same Sky (Formerly CUI Devices) CMS-15113-078S	91 dBA	Rectangular	8 Ohm	1 VA	0.118 in	700 mW	Nd-Fe-B	0.433 in	0.591 in	700 Hz	General Purpose	Magnetic	Top	Spring Type	700 mW	100 mm	100 Hz	20 kHz	Polyester Polyethylene Terephthalate (PET)	Sound Pressure Level (SPL)
Same Sky (Formerly CUI Devices) CMS-151125-076L100B	92.5 dBA	Rectangular	6 Ohms	1 VA	0.098 in	700 mW	Nd-Fe-B	0.433 in	0.591 in	550 Hz	General Purpose	Magnetic	Top	Wire Leads with Connector	700 mW	100 mm	100 Hz	20 kHz	Polyester Polyethylene Terephthalate (PET)	Sound Pressure Level (SPL)
