1410420-1

Active

TE Connectivity AMP Connectors

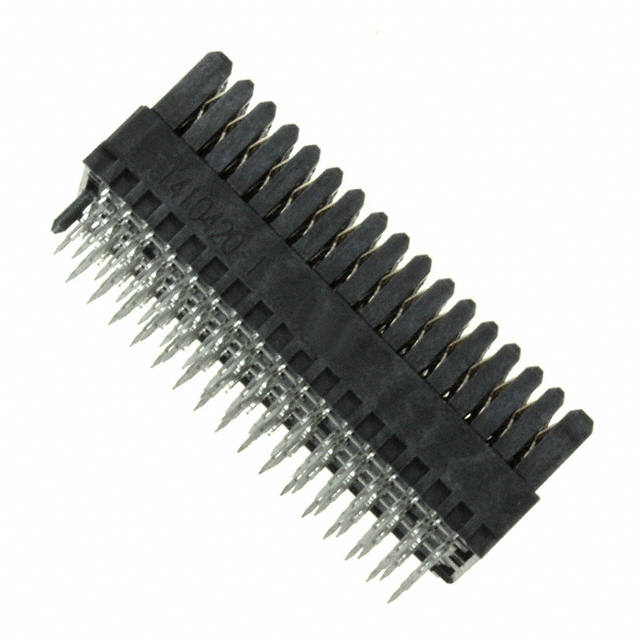

CONN RCPT VITA41 176POS PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT VITA41 176POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1410420-1

Color	Black
Connector Type	Receptacle, Female Blade Sockets
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Layout, Typical [custom]	48
Contact Layout, Typical [custom]	128
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	16
Number of Positions	176
Number of Positions Loaded	All
Number of Rows	11
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.071 in
Pitch [x]	1.8 mm
Termination	Press-Fit
Voltage Rating	50 V

CONN RCPT VITA41 176POS PCB

Part	Contact Finish Thickness	Contact Finish Thickness	Color	Pitch [x]	Pitch [x]	Connector Type	Contact Finish	Voltage Rating	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Number of Positions Loaded	Number of Rows	Connector Usage	Material Flammability Rating	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Number of Positions	Number of Columns
TE Connectivity AMP Connectors 1410420-1	50 µin	1.27 µm	Black	0.071 in	1.8 mm	Receptacle, Female Blade Sockets	Gold	50 V	Press-Fit	105 ░C	-55 °C	Board Guide	Through Hole	All	11	Backplane	UL94 V-0	48	128	176	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

176 Connector Receptacle, Female Blade Sockets Through Hole Black VITA 41, Full, Stand Alone
