788154-2

Active

TE Connectivity AMP Connectors

CONN RCPT HSNG FMALE 4POS PNL MT

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSNG FMALE 4POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	788154-2

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Features	Backshell
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Shell Size - Insert	11-4
Shielding	Unshielded
Type	For Female Sockets

CONN RCPT HSNG FMALE 4POS PNL MT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Housing Color	Material Flammability Rating	Features	Contact Size	Ingress Protection	Connector Type	Orientation	Insert Material	Shell Material	Number of Positions	Contact Shape	Type	Shell Size - Insert	Contact Type	Note	Mounting Feature
TE Connectivity AMP Connectors 788154-2	105 ░C	-55 °C	Unshielded	Black	UL94 V-0	Backshell	16	IP67 - Dust Tight, Waterproof	Receptacle Housing	Keyed	Thermoplastic	Polyamide (PA66), Nylon 6/6, Glass Filled	4	Circular	For Female Sockets	11-4	Crimp	Contacts Not Included	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

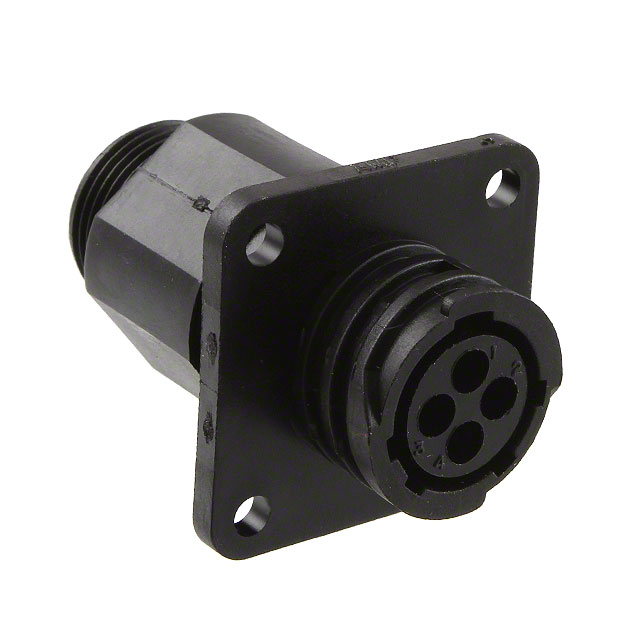

4 Position Circular Connector Receptacle Housing Panel Mount Backshell
