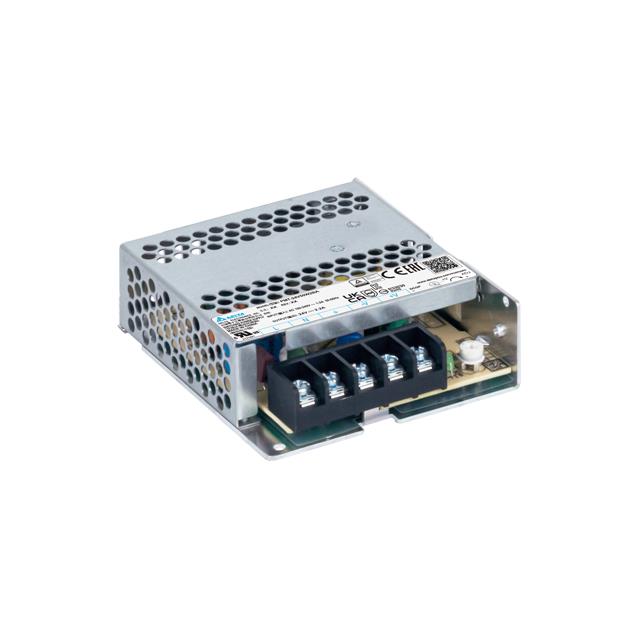

PMT-36V50W2BA
ActiveDelta Electronics
AC/DC CONVERTER 36V 50W
PMT-36V50W2BA
ActiveDelta Electronics
AC/DC CONVERTER 36V 50W
Description
General part information
PMT-36V50W2BA
Enclosed AC DC Converters 1 Output 36V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PMT-36V50W2BA |
|---|---|
| Applications | ITE (Commercial), Household Appliances |
| Approval Agency | CB, CCC, cTUVus, TUV, CE |
| Current - Output 1 | 1.45 A |
| Efficiency | 86 % |
| Features | Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 50 W |
| Size / Dimension Height | 1.18 in |
| Size / Dimension Length | 3.9 in |
| Size / Dimension Width | 3.23 in |
| Standard Number | 60950-1, 62368-1, 60335-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 3750 VDC |
| Voltage - Output 1 | 36 V |
