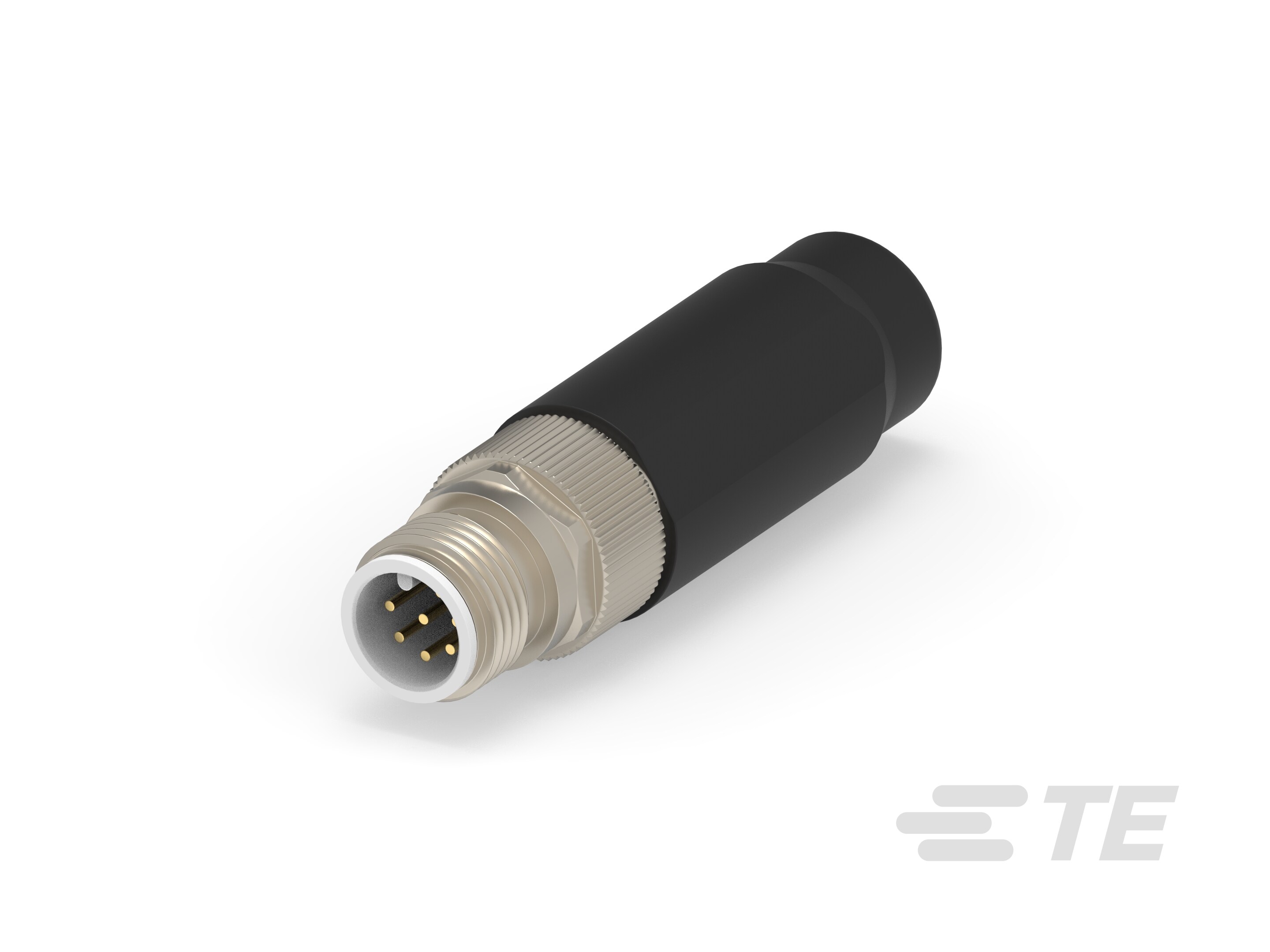

Specification	1-2823449-4

Color	Silver
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Current Rating	2 A
Fastening Type	Threaded
Features	Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-8
Shielding	Shielded
Termination	Crimp
Voltage Rating	30 V

M12 Series

...

Part	Shielding	1st Connector Number of Positions	1st Connector Mounting Type	1st Connector Orientation	1st Connector Gender	1st Connector Type	Assembly Configuration	2nd Connector Type	1st Connector Number of Positions Loaded	Cable Material	1st Connector Shell Size - Insert	Ingress Protection Description	Ingress Protection IP Rating	Color	Length	Usage	Cable Type	2nd Connector Mounting Type	2nd Connector Shell Size - Insert (Code)	2nd Connector Number of Positions Loaded	2nd Connector Number of Positions	2nd Connector Gender	2nd Connector Orientation	Termination	Applications	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Mounting Feature	Shell Size - Insert	Orientation	Shell Finish	Number of Positions	Mounting Type	Contact Finish Thickness - Mating	Fastening Type	Contact Finish - Mating	Primary Material	Current Rating	Shell Material	Voltage Rating	Voltage Rating (Type)
TE Connectivity AMP Connectors 1-2273100-2	Shielded	5 positions	Free Hanging (In-Line)	A	Male Pins	Plug Right Angle	Standard	Wire Leads	All	Polyvinyl Chloride (PVC)	M12	Dust Tight Water Resistant Waterproof	IP65 IP67	Gray	9.84 ft	Industrial Environments	Round
TE Connectivity AMP Connectors 2273096-3	Shielded	3 positions	Free Hanging (In-Line)	A	Male Pins	Plug Right Angle	Standard	Wire Leads	All	Polyurethane (PUR)	M12	Dust Tight Water Resistant Waterproof	IP65 IP67	Gray	16.4 ft	Industrial Environments	Round
TE Connectivity AMP Connectors 1-2273125-4	Unshielded	3 positions	Free Hanging (In-Line)	Keyed	Female Sockets	Receptacle Right Angle	Standard	Plug	All	Polyvinyl Chloride (PVC)	M12	Dust Tight Water Resistant Waterproof	IP65 IP67	Black	4.92 ft	Industrial Environments	Round	Free Hanging (In-Line)	M12	All	3	Male Pins	Keyed
TE Connectivity AMP Connectors 1-2289297-0	Shielded	5 positions	Free Hanging (In-Line)	AA	Female Sockets	Receptacle	Standard	Plug	All	Polyurethane (PUR)	M12	Dust Tight Waterproof	IP67	Black	49.2 ft	Industrial Environments	Round	Free Hanging (In-Line)	M12	All	5 positions	Male Pins	AA
TE Connectivity AMP Connectors 2-2273125-4	Unshielded	3 positions	Free Hanging (In-Line)	Keyed	Female Sockets	Receptacle Right Angle	Standard	Plug	All	Polyurethane (PUR) Polyvinyl Chloride (PVC)	M12	Dust Tight Water Resistant Waterproof	IP65 IP67	Black	4.92 ft	Industrial Environments	Round	Free Hanging (In-Line)	M12	All	3	Male Pins	Keyed
TE Connectivity AMP Connectors 1-2273035-4	Unshielded	5 positions	Free Hanging (In-Line)	A	Female Sockets	Receptacle	Standard	Wire Leads	All	Polyvinyl Chloride (PVC)	M12	Dust Tight Water Resistant Waterproof	IP65 IP67	Black	32.8 ft	Industrial Environments	Round
TE Connectivity AMP Connectors 2-2273125-3	Unshielded	3 positions	Free Hanging (In-Line)	Keyed	Female Sockets	Receptacle Right Angle	Standard	Plug	All	Polyurethane (PUR) Polyvinyl Chloride (PVC)	M12	Dust Tight Water Resistant Waterproof	IP65 IP67	Black	3.28 ft	Industrial Environments	Round	Free Hanging (In-Line)	M12	All	3	Male Pins	Keyed
TE Connectivity AMP Connectors 1-2823445-3
TE Connectivity AMP Connectors 1838891-2												Dust Tight Waterproof	IP67	Silver										Solder Cup	Automotive Industrial	-25 °C	90 °C	Female Sockets Receptacle	Bulkhead Rear Side Nut	M12-4	Keyed	Nickel	4	Panel Mount	5.9 µin	Threaded	Gold	Metal	5 A	Zinc Die Cast	250 V	DC
TE Connectivity AMP Connectors 2273089-1	Unshielded	5 positions	Free Hanging (In-Line)	A	Female Sockets	Receptacle Right Angle	Standard	Wire Leads	All	Polyurethane (PUR)	M12	Dust Tight Water Resistant Waterproof	IP65 IP67	Black	4.92 ft	Industrial Environments	Round
