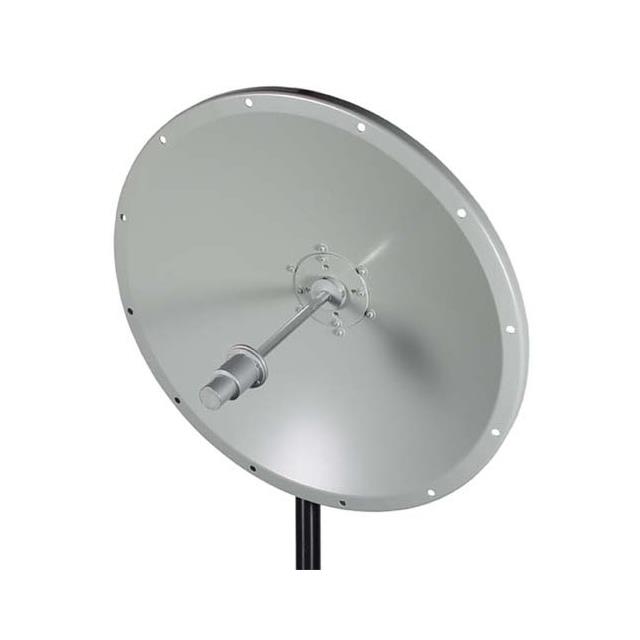

HG5824D
ActivePasternack
ANTDISH 5.8GHZ 24DBI
HG5824D
ActivePasternack
ANTDISH 5.8GHZ 24DBI
Description
General part information
HG5824D
5.787GHz ISM, WLAN Dish RF Antenna 5.725GHz ~ 5.85GHz 24dBi N Type Female Mast Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG5824D |
|---|---|
| Antenna Type | Dish |
| Applications | WLAN, ISM |
| Frequency (Center/Band) | 5.787 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 5.85 GHz |
| Frequency Range (Min) | 5.725 GHz |
| Gain | 24 dBi |
| Mounting Type | Mast Mount |
| Number of Bands | 1 |
| Power - Max | 100 VA |
| RF Family/Standard | WiFi, General ISM |
| Termination | N Type Female |
| VSWR | 1.5 |
