6469062-1
ActiveTE Connectivity AMP Connectors
HARD METRIC CONNECTORS HMZD 4PAIR HDR. ASSY .50MM MO
6469062-1
ActiveTE Connectivity AMP Connectors
HARD METRIC CONNECTORS HMZD 4PAIR HDR. ASSY .50MM MO
Description
General part information
6469062-1

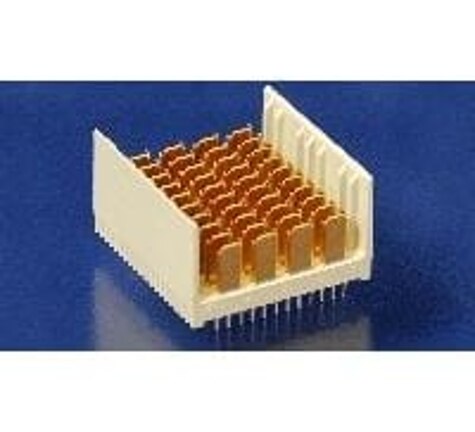

160 Position High Speed Backplane Connector, 8 Row, 20 Column, PCB Mount Header, Vertical, Partially Shrouded, Z-PACK HM-Zd
Technical Specifications
Parameters and characteristics for this part
| Specification | 6469062-1 |
|---|---|
| Connector Style | High Speed |
| Connector Type | Blades, Male Pins, Header |
| Connector Usage | Backplane |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Ground Contacts (Typical) | 80 |
| Mounting Type | Through Hole |
| Number of Columns | 20 |
| Number of Positions | 160 |
| Number of Positions Loaded | All |
| Number of Rows | 8 |
| Pitch | 0.098 in |
| Signal Contacts (Typical) | 80 |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
Datasheet
6469062-1 | Datasheet
High Speed Backplane Connectors catalog - Z-PACK HM-Zd Connector
Z-PACK Hard Metric (HM)-Zd and HM-Zd Plus 2-, 3-, and 4-Pair Connector Systems
ENG_CD_6469062_B.pdf
Solutions for AdvancedTCA, AdvancedTCA 300, MicroTCA, and AdvancedMC Standards Datasheet 3-1773445-8
Two, Three and Four Pair HM-Zd Connectors
The Complete Solution for AdvancedTCA
Datasheet
