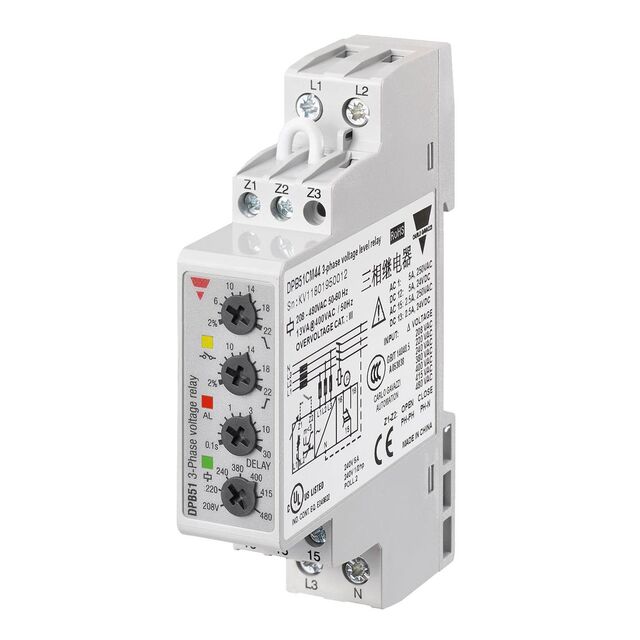

3-PHASE VOLTAGE LEVEL RELAY REV.
DPB51CM44
ActiveCarlo Gavazzi Inc.
3-PHASE VOLTAGE LEVEL RELAY REV.
Description
General part information
DPB51CM44
Phase Loss, Phase Sequence, Voltage Sensing AC 208 ~ 480VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | DPB51CM44 |
|---|---|
| Circuit | SPDT (1 Form C) |
| Contact Rating (Current) | 5 A |
| Delay Time (Fixed) | 0.2 Sec |
| Delay Time Mode | Fixed |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | Relay |
| Trip Status | Low, Energized High |
| Trip Voltage (Max) | 550 V |
| Trip Voltage (Min) | 177 V |
| Type | Voltage Sensing AC, Phase Loss, Phase Sequence |
| Voltage - Supply (Maximum) | 480 VAC |
| Voltage - Supply (Minimum) | 208 VAC |
| Voltage Rating | 24VDC, 250VAC |
