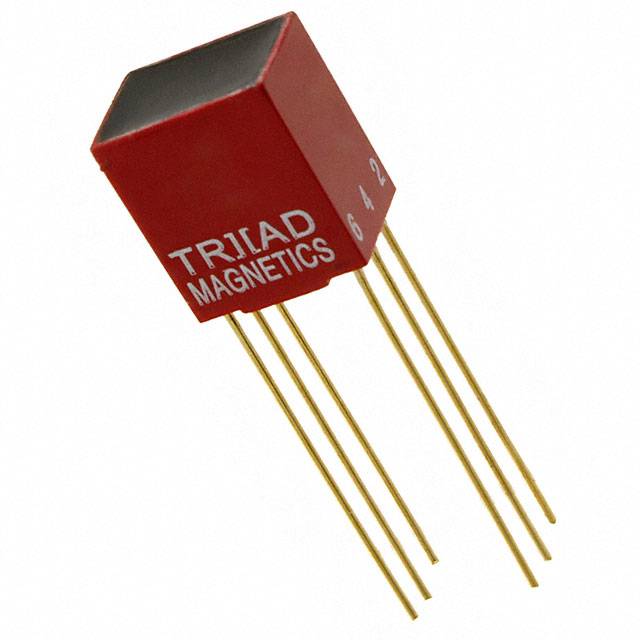

SP-21-B
ActiveTriad Magnetics
AUDIO XFMR 10KCT / 2KCT TH
SP-21-B
ActiveTriad Magnetics
AUDIO XFMR 10KCT / 2KCT TH
Description
General part information
SP-21-B
10kCT Impedance Primary Ohms 2kCT Impedance Secondary Ohms 2.24:1 Audio Transformer 300Hz ~ 100kHz Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | SP-21-B |
|---|---|
| DC Resistance (DCR) - Primary | 1.05 kOhm |
| DC Resistance (DCR) - Secondary | 330 Ohm |
| Frequency Range (Max) | 100 kHz |
| Frequency Range (Min) | 300 Hz |
| Frequency Response Tolerance | 2 dB |
| Height - Seated (Max) | 0.465 in |
| Impedance - Primary (Ohms) | 10 kOhm |
| Impedance - Primary (Ohms) Code | CT |
| Impedance - Secondary (Ohms) | 2 kOhm |
| Impedance - Secondary (Ohms) Qualifier | CT |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power Level | 50 mW |
| Size / Dimension Length | 0.41 in |
| Size / Dimension Width | 0.31 in |
| Termination Style | PC Pin |
| Transformer Type | Audio Coupling |
| Turns Ratio - Primary | 2.24 |
| Turns Ratio - Secondary | 1 |
| Voltage - Isolation | 1000 VRMS |
