500D687M025DF2T
ActiveVishay Dale
CAPACITOR,680UF,25VDC,20-% TOL,20+% TOL
500D687M025DF2T
ActiveVishay Dale
CAPACITOR,680UF,25VDC,20-% TOL,20+% TOL
Description
General part information
500D687M025DF2T

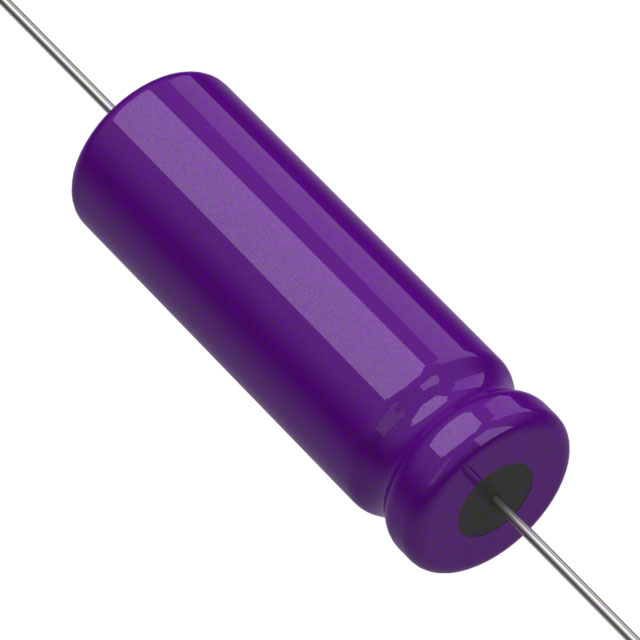

680 µF 25 V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 500D687M025DF2T |
|---|---|
| Applications | General Purpose |
| Capacitance | 680 µF |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Size / Dimension Diameter | 0.374 in |
| Size / Dimension Length | 1.26 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
