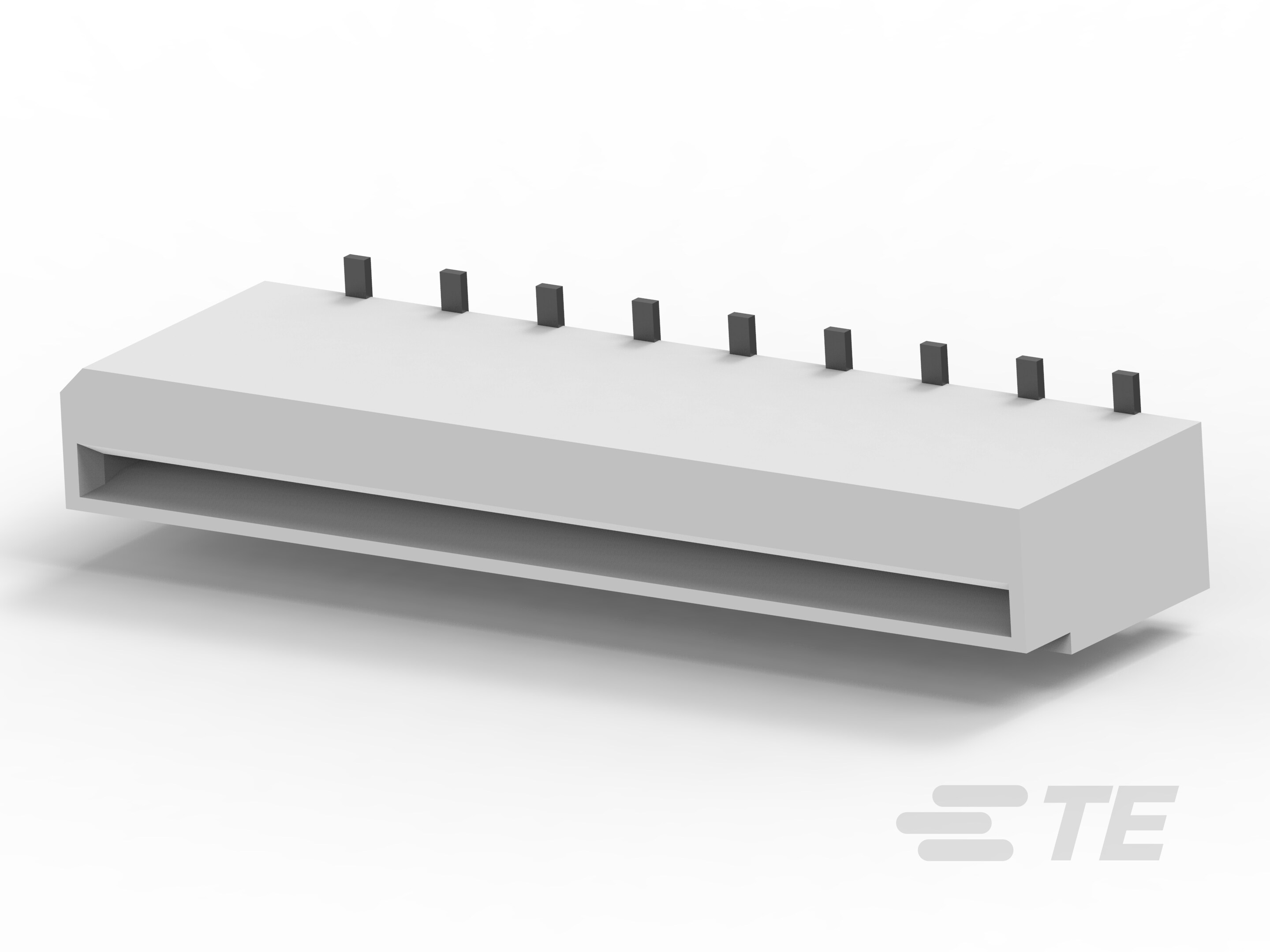

1-1735042-8
ActiveTE Connectivity AMP Connectors
CONN FFC FPC VERT 18POS 1MM SMD
1-1735042-8
ActiveTE Connectivity AMP Connectors
CONN FFC FPC VERT 18POS 1MM SMD
Description
General part information
1-1735042-8
1 mm [.039 in] Centerline, Vertical, Surface Mount, Tin (Sn), 18 Position, FPC Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1735042-8 |
|---|---|
| Cable End Type | Straight |
| Connector/Contact Type | Contacts, 1 Sided, Vertical |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FFC, FPC |
| Height Above Board | 0.22 in |
| Housing Material | Nylon, Polyamide, PA |
| Mounting Type | Surface Mount |
| Number of Positions | 18 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Pitch | 0.039 in |
| Termination | Solder |
| Voltage Rating | 125 V |
