2480557-2
ActiveTE Connectivity AMP Connectors
TRIAX BNC M TO M BELDEN 9222 50 OHM 36"
2480557-2
ActiveTE Connectivity AMP Connectors
TRIAX BNC M TO M BELDEN 9222 50 OHM 36"
Description
General part information
2480557-2

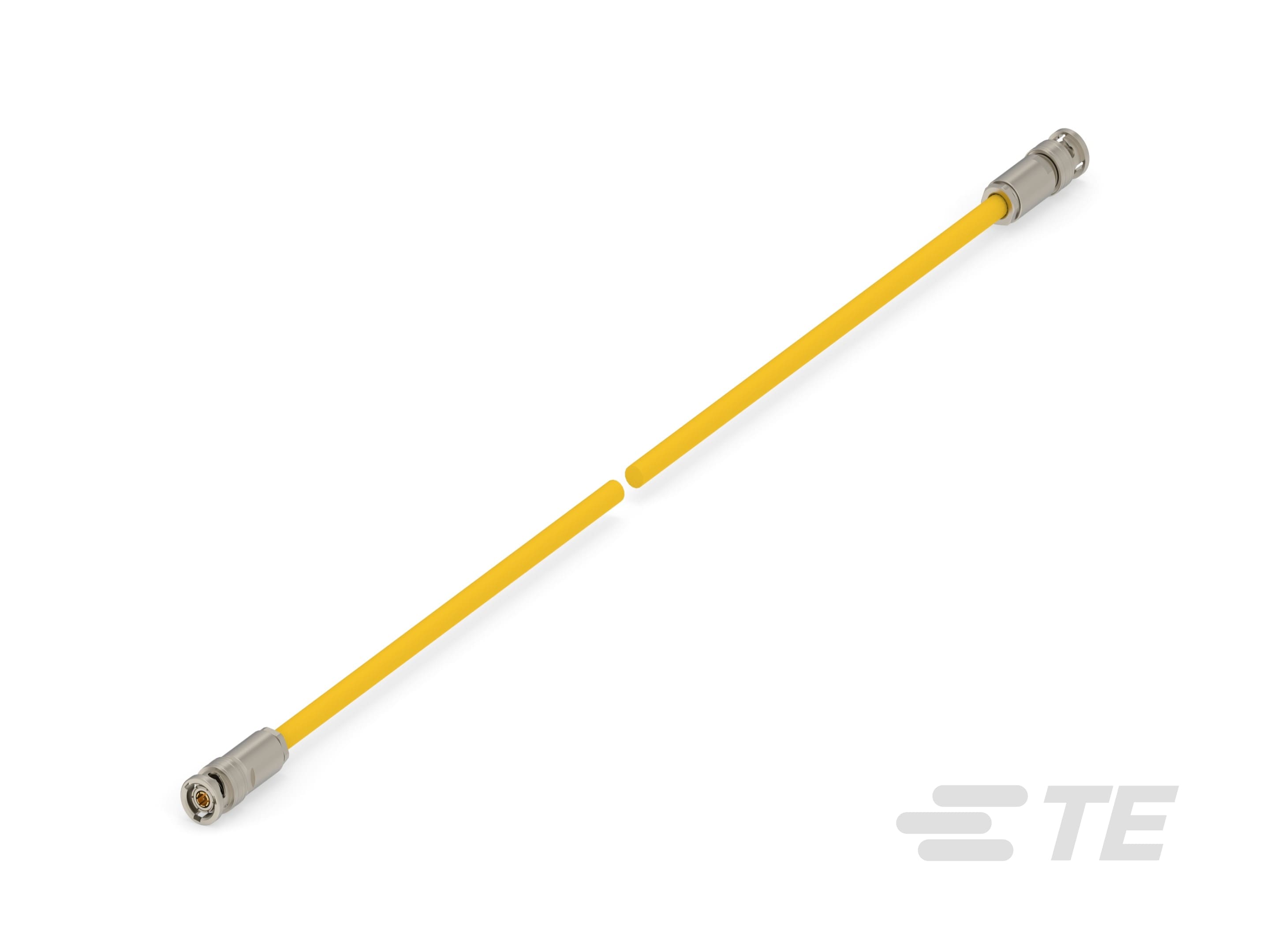

Triaxial BNC Cable Assembly, .914 m [2.99335 ft], Yellow Cable, .5 GHz, 50 ohm, PVC Jacket, 20 AWG, 6.1 mm [.24 in] Diameter, Triaxial BNC Plug End A
Technical Specifications
Parameters and characteristics for this part
| Specification | 2480557-2 |
|---|---|
| 1st Connector | BNC, Triaxial |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | BNC, Triaxial |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | Belden |
| Cable Type Size | 9222 |
| Color | Yellow |
| Frequency - Max | 300 MHz |
| Length | 35.98 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | BNC, Triaxial, Triaxial to BNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
