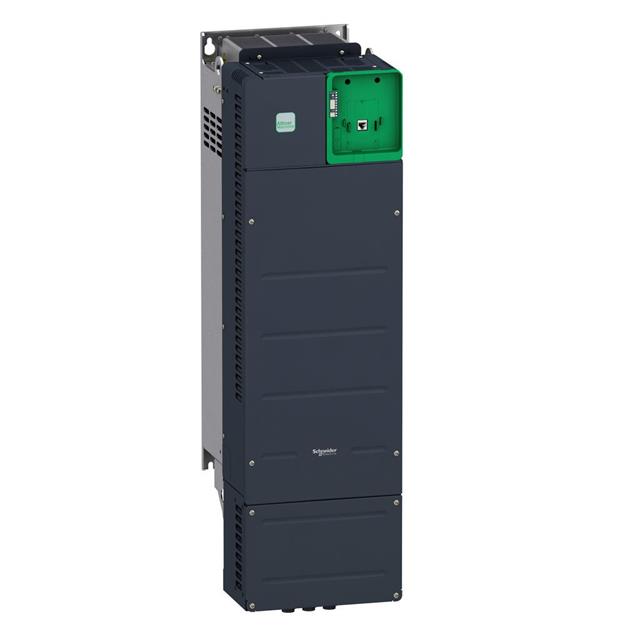

ATV340D55N4E
ActiveSCHNEIDER ELECTRIC
VARIABLE SPEED DRIVE, ALTIVAR MACHINE ATV340, ETHERNET DRIVE, THREE PHASE, 75 KW, 380 TO 480 V
ATV340D55N4E
ActiveSCHNEIDER ELECTRIC
VARIABLE SPEED DRIVE, ALTIVAR MACHINE ATV340, ETHERNET DRIVE, THREE PHASE, 75 KW, 380 TO 480 V
Description
General part information
ATV340D55N4E
VARIABLE SPEED DRIVE, ALTIVAR MACHINE ATV340, ETHERNET DRIVE, THREE PHASE, 75 KW, 380 TO 480 V
Technical Specifications
Parameters and characteristics for this part
| Specification | ATV340D55N4E |
|---|---|
| Current - Output | 145 A |
| Interface | EtherCat, RS-485 |
| Mounting Type | Chassis Mount |
| Number of Motors | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -15 °C |
| Voltage - Load (Max) | 480 V |
| Voltage - Load (Min) | 380 V |
| Wattage - Load | 55000 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
