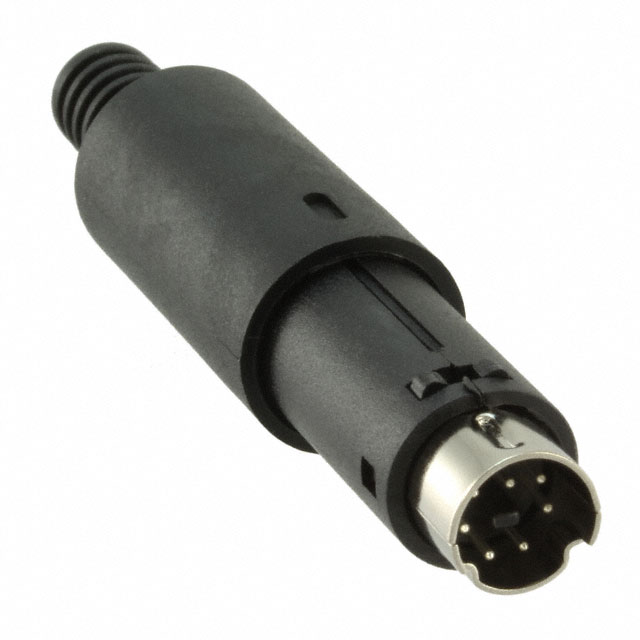

MD-70
ObsoleteSame Sky (Formerly CUI Devices)
CONN PLUG MALE MINI DIN 7P SLDR
MD-70
ObsoleteSame Sky (Formerly CUI Devices)
CONN PLUG MALE MINI DIN 7P SLDR
Description
General part information
MD-70
7 Position Circular Connector Plug, Male Pins Solder, Crimp Pin Adapter Available
Technical Specifications
Parameters and characteristics for this part
| Specification | MD-70 |
|---|---|
| Color | Black |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Brass |
| Current Rating Options | 2A, 1A |
| Fastening Type | Push-Pull |
| Features | Backshell, Strain Relief |
| Insert Material | Polyamide, PA6, Nylon 6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyacrylonitrile Butadiene Styrene (ABS) |
| Shell Size - Insert | Mini DIN |
| Termination | Solder, Crimp Pin Adapter Available |
| Voltage Rating (AC) | 100 VAC |
| Voltage Rating (DC) | 12 VDC |
