PE15A5020
ObsoletePasternack
40 DB GAIN, 13 WATT P1DB, 800 MH
PE15A5020
ObsoletePasternack
40 DB GAIN, 13 WATT P1DB, 800 MH
Description
General part information

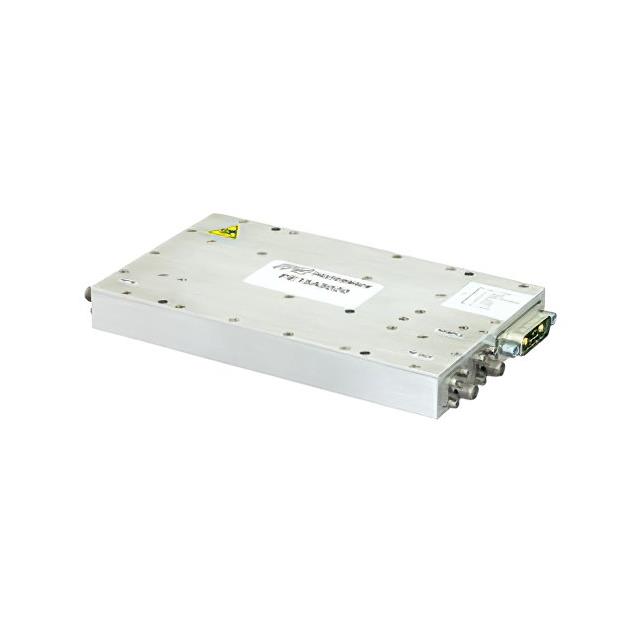

PE15A5020
RF Amplifier IC Radar 800MHz ~ 2.5GHz Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PE15A5020 |
|---|---|
| Current - Supply | 400 mA |
| Frequency (Max) | 2.5 GHz |
| Frequency (Min) | 800 MHz |
| Gain | 40 dB |
| Mounting Type | Chassis Mount |
| P1dB | 41 dBm |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| RF Type | Radar |
| Voltage - Supply (Maximum) | 13 V |
| Voltage - Supply (Minimum) | 11 VDC |
