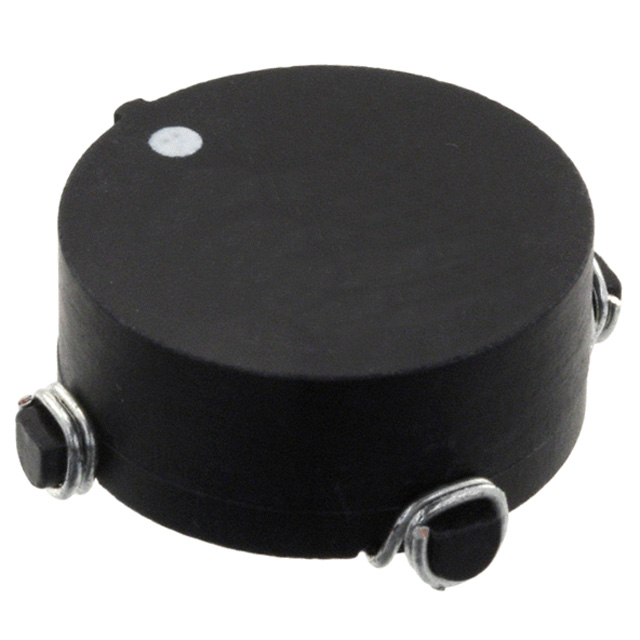

CM6296R-255
2.5 mH @ 1 kHz 2 Line Common Mode Choke Surface Mount 2.2A DCR 162mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CM6296R-255 |
|---|---|
| Current Rating (Max) | 2.2 A |
| DC Resistance (DCR) (Max) | 162 mOhm |
| Height (Max) | 0.423 in |
| Inductance | 2.5 mH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 1.058 in |
| Size / Dimension Width | 1.058 in |
