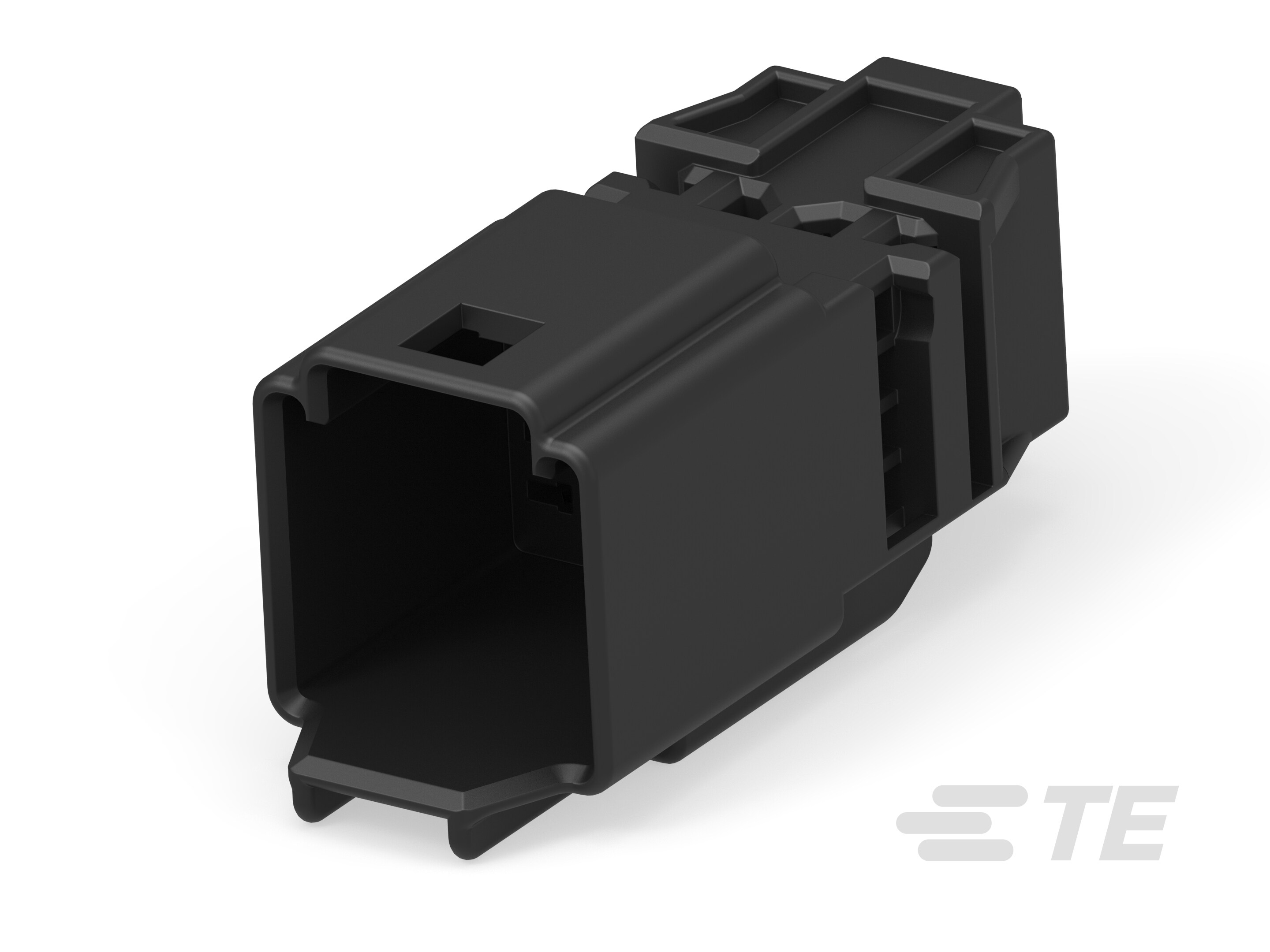

1563125-2
ActiveTE Connectivity AMP Connectors
10POS, MIXED,TAB HSG
1563125-2
ActiveTE Connectivity AMP Connectors
10POS, MIXED,TAB HSG
Description
General part information
1563125-2
10 Position Housing, Housing for Male Terminals, Wire-to-Wire, 2.54 mm / 5.2 mm [.1 in / .204 in] Centerline, Natural, Wire & Cable, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 1563125-2 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Detent Lock |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 10 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Row Spacing | 0.354 in |
