PZHT0603-0R00GT
ActiveVishay Dale
SFERNICE THIN FILMS
PZHT0603-0R00GT
ActiveVishay Dale
SFERNICE THIN FILMS
Description
General part information

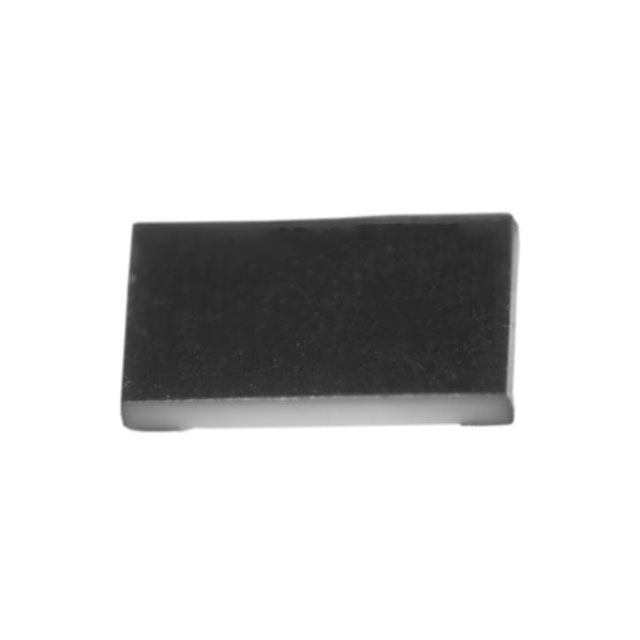

PZHT0603-0R00GT
0 Ohms Jumper Chip Resistor 0603 (1608 Metric) Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | PZHT0603-0R00GT |
|---|---|
| Composition | Thin Film |
| Height - Seated (Max) | 0.205 in, 0.025 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 215 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 |
| Resistance | 0 Ohm |
| Size / Dimension Length | 0.06 in |
| Size / Dimension Width | 0.033 in |
| Tolerance | Jumper |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
