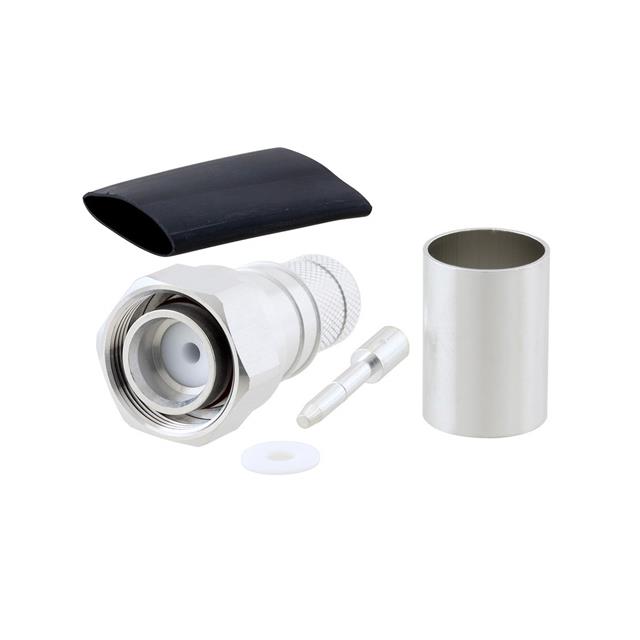

TC-600-4310M-X-LC
ActivePasternack
4.3-10 MALE CONNECTOR CRIMP/SOLD
TC-600-4310M-X-LC
ActivePasternack
4.3-10 MALE CONNECTOR CRIMP/SOLD
Description
General part information
TC-600-4310M-X-LC
4.3/10 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | TC-600-4310M-X-LC |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Cable Group | LMR-600 |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | 4.3/10 |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Crimp |
