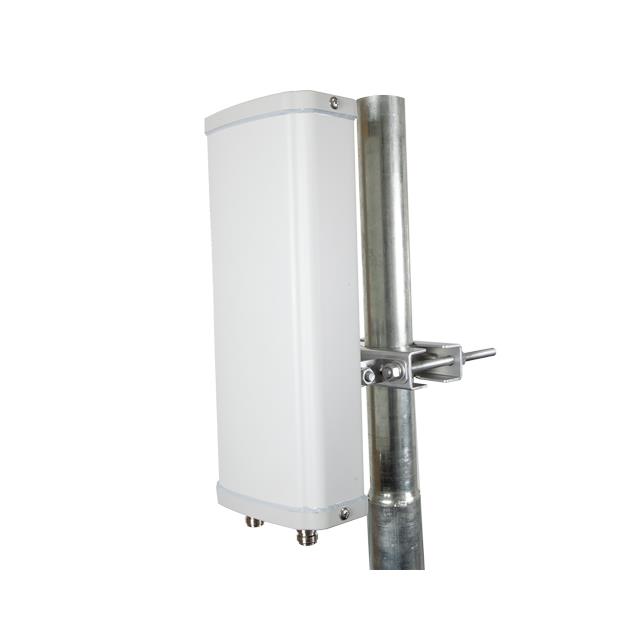

HG4450-14DP-090
ActivePasternack
ANTENNA, MIMO, 4.4 GHZ TO 5 GHZ, 14 DBI, HORIZONTAL, VERTICAL, N CONNECTOR
HG4450-14DP-090
ActivePasternack
ANTENNA, MIMO, 4.4 GHZ TO 5 GHZ, 14 DBI, HORIZONTAL, VERTICAL, N CONNECTOR
Description
General part information
HG4450-14DP-090
RF ANTENNA 5G Sector N Type Female (2) Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG4450-14DP-090 |
|---|---|
| Antenna Type | Sector |
| Applications | 5G |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 4.7 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 5 GHz |
| Frequency Range (Min) | 4.4 GHz |
| Gain | 14 dBi |
| Height (Max) | 2.4 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max | 50 VA |
| RF Family/Standard | Cellular |
| Termination Count | 2 |
| Termination Type | N Type Female |
| VSWR | 2 |
