L000727-01
ActiveTE Connectivity AMP Connectors
RF ANTENNA, 410MHZ TO 467MHZ, LINEAR ROHS COMPLIANT: YES
L000727-01
ActiveTE Connectivity AMP Connectors
RF ANTENNA, 410MHZ TO 467MHZ, LINEAR ROHS COMPLIANT: YES
Description
General part information
L000727-01

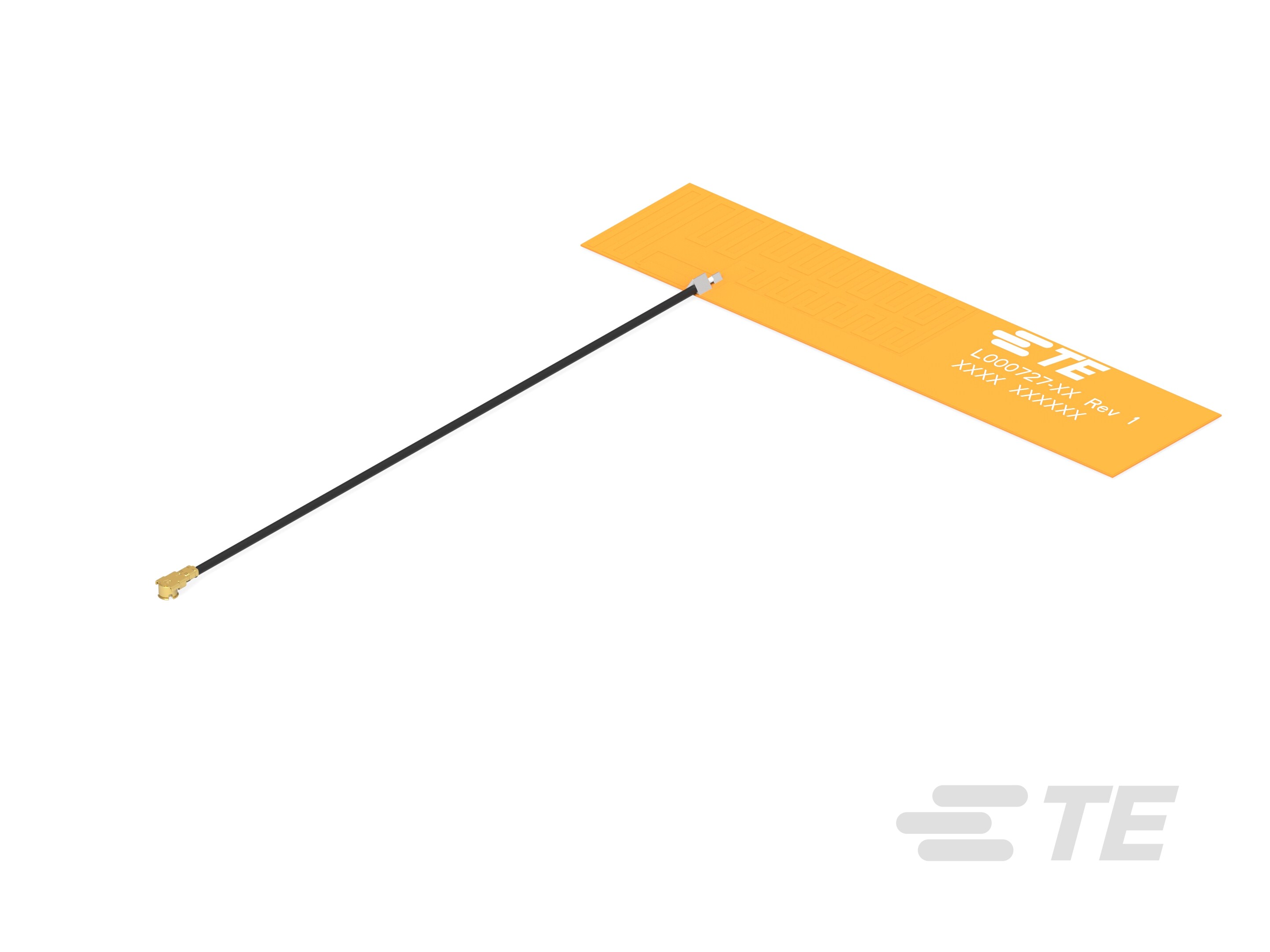

Flexible PCB (FPC) Antenna, Internal/Embedded Mount, Adhesive Mount, MHF1, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | L000727-01 |
|---|---|
| Antenna Type | Flat Patch |
| Applications | General Purpose |
| Features | Cable, 48.77mm |
| Frequency (Center/Band) | 440 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 470 MHz |
| Frequency Range (Min) | 410 MHz |
| Gain | 3 dBi |
| Height (Max) | 0.06 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Power - Max | 10 VA |
| RF Family/Standard | General ISM |
| Termination | MHF1 |
| VSWR | 2.25 |
