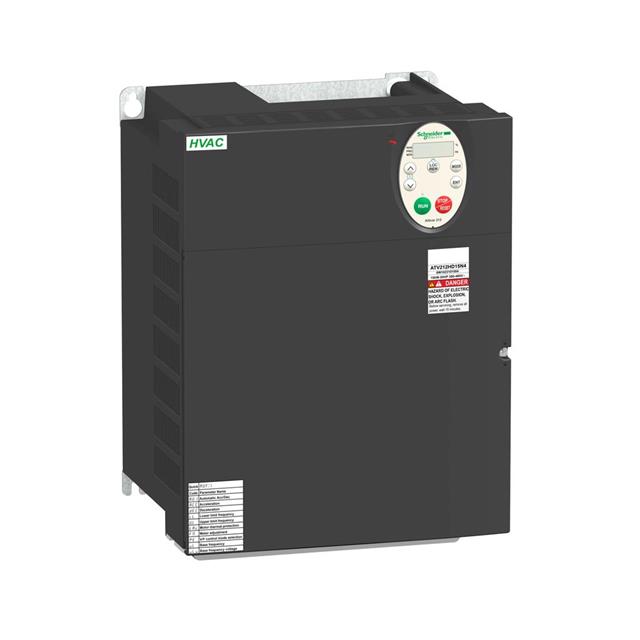

ATV212HD22N4S
ActiveSCHNEIDER ELECTRIC
MOTOR STARTER, ALTIVAR 212 SERIES, VARIABLE SPEED DRIVE, THREE PHASE, 22 KW, 43.5 A, 380 TO 480VAC
ATV212HD22N4S
ActiveSCHNEIDER ELECTRIC
MOTOR STARTER, ALTIVAR 212 SERIES, VARIABLE SPEED DRIVE, THREE PHASE, 22 KW, 43.5 A, 380 TO 480VAC
Description
General part information
ATV212HD22N4S
MOTOR STARTER, ALTIVAR 212 SERIES, VARIABLE SPEED DRIVE, THREE PHASE, 22 KW, 43.5 A, 380 TO 480VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | ATV212HD22N4S |
|---|---|
| Current - Output | 43.5 A |
| Interface | RS-485 |
| Mounting Type | Chassis Mount |
| Number of Motors | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Voltage - Load (Max) | 480 V |
| Voltage - Load (Min) | 380 V |
| Voltage - Supply (Maximum) | 528 VAC |
| Voltage - Supply (Minimum) | 323 V |
| Wattage - Load | 1.5 kW |
