B59850C0130A051
ActiveEPCOS - TDK Electronics
PTC RESET FUSE 265V 200MA RADIAL
B59850C0130A051
ActiveEPCOS - TDK Electronics
PTC RESET FUSE 265V 200MA RADIAL
Description
General part information
B59850C0130A051

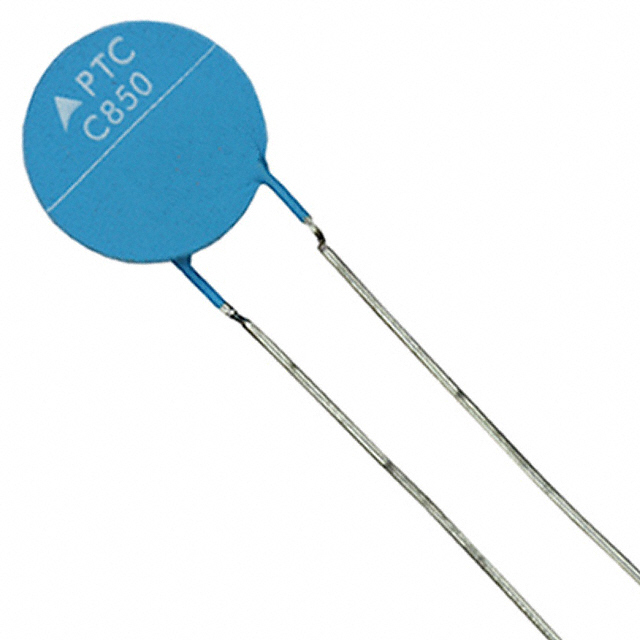

Ceramic PTC Resettable Fuse 265V 200 mA Ih Through Hole Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | B59850C0130A051 |
|---|---|
| Approval Agency | UR |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Max | 1.5 A |
| Current - Trip (It) | 320 mA |
| Height - Seated (Max) | 0.571 in |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | Disc, Radial |
| Resistance - 25°C (Typ) | 13 Ohms |
| Size / Dimension Diameter | 0.433 in |
| Size / Dimension Thickness | 0.197 in |
| Type | Ceramic |
| Voltage - Max | 265 V |
