SR45UBWDVRT
ActiveEaton Tripp Lite

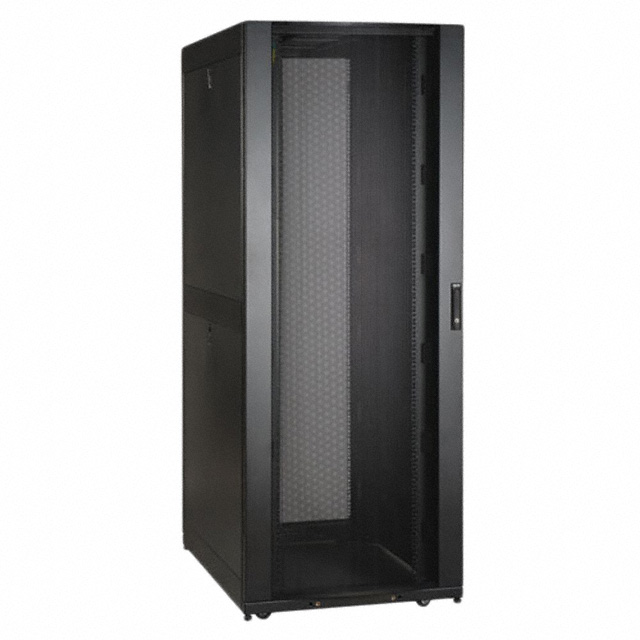

RACK CABINET, 19 INCH, WIDE STANDARD DEPTH, PRE-INSTALLED SRCABLEVRT3, SERVER, SMARTRACK SERIES
SR45UBWDVRT
ActiveEaton Tripp Lite
RACK CABINET, 19 INCH, WIDE STANDARD DEPTH, PRE-INSTALLED SRCABLEVRT3, SERVER, SMARTRACK SERIES
Description
General part information
SR45UBWDVRT
Metal, Steel Cabinet Rack Enclosed, Bottom, Front, Sides, Top 43.000" L x 29.530" W x 83.750" H (1092.20mm x 750.06mm x 2127.25mm) Black
Technical Specifications
Parameters and characteristics for this part
| Specification | SR45UBWDVRT |
|---|---|
| Color | Black |
| Dimensions - Overall Height | 83.75 in |
| Dimensions - Overall Length | 43 " |
| Dimensions - Overall Width | 29.53 " |
| Door | Steel |
| Features | Locking, Removable Sides, Cable Entry Systems |
| Material | Metal, Steel |
| Mounting Rails | Two Pair |
| Number of Units | 45 U |
| Panel Height | 78.75 in |
| Panel Length | 37 in |
| Shipping Info | Drop shipped from the Manufacturer's Warehouse |
| Style | Top, Front, Enclosed, Sides, Bottom |
| Type | Cabinet Rack |
| Ventilation | Back, Top, Front |
| Weight | 340 lbs |
