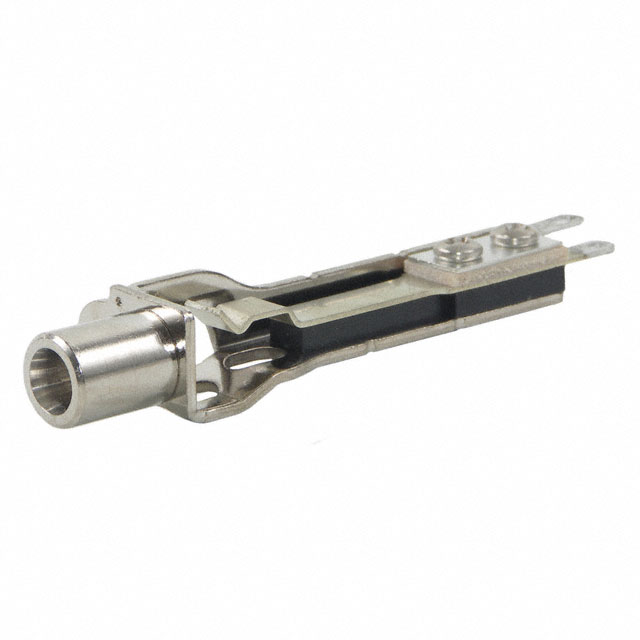

MT331X
ActiveSWITCHCRAFT/CONXALL
CONN JACK MONO 6.35MM PNL MNT
MT331X
ActiveSWITCHCRAFT/CONXALL
CONN JACK MONO 6.35MM PNL MNT
Description
General part information
MT331X
6.35mm (0.250", 1/4") - Headphone Phone Jack Mono Connector Solder Eyelet(s)
Technical Specifications
Parameters and characteristics for this part
| Specification | MT331X |
|---|---|
| Actual Diameter | 0.252 in |
| Body Color | Silver |
| Body Material | Steel |
| Connector Type | Phone Jack |
| Contact Material | Palladium (Pd) |
| Contact Material - Plating | Gold |
| Features | Grounding Tab |
| Gender | Female |
| Industry Recognized Mating Diameter (Headphone) | 6.35 mm |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Panel Mount |
| Number of Conductors | 2 Conductors |
| Number of Contacts | 2 Contacts |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -20 °C |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder Eyelet(s) |
