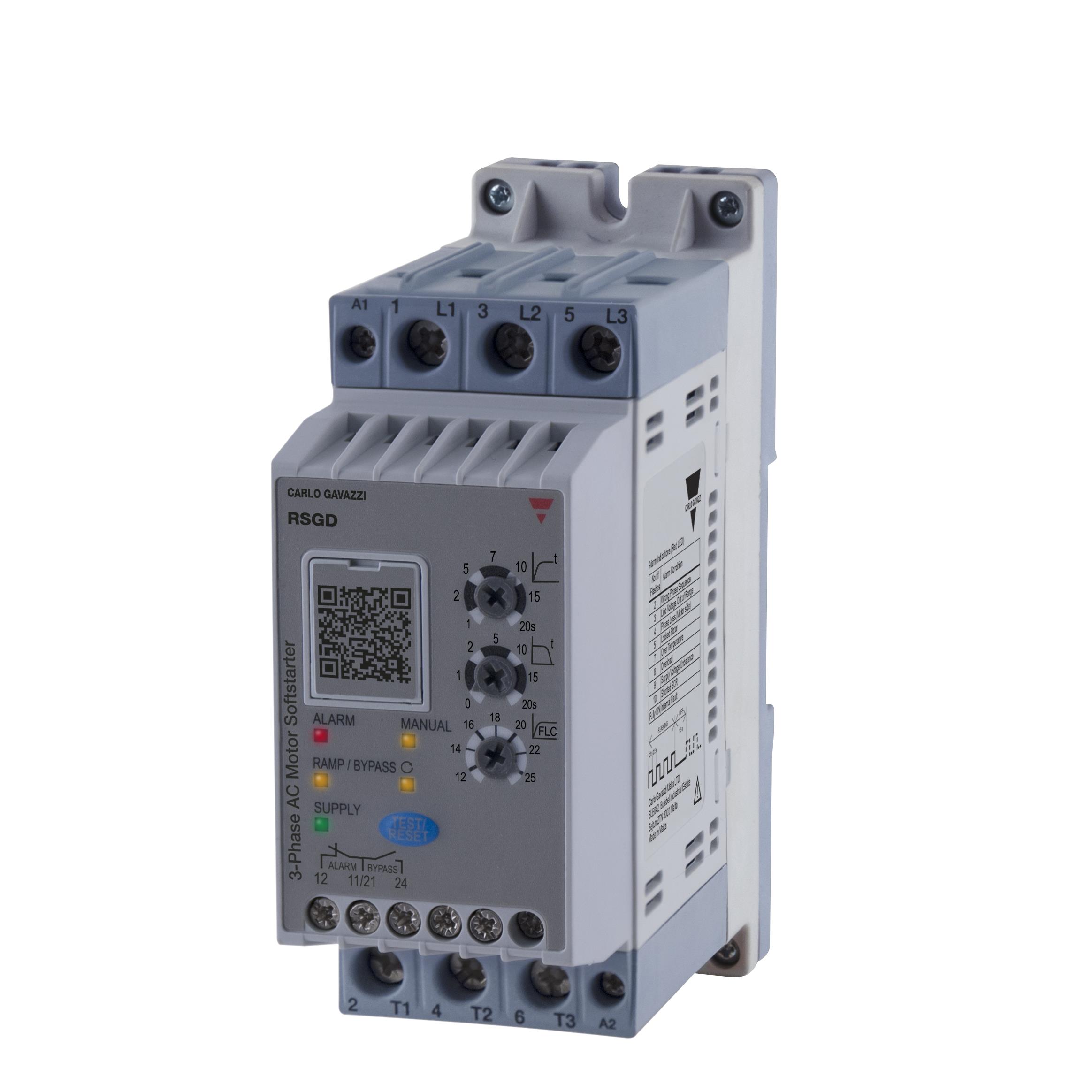

RSGD4025E0VD200
ActiveCarlo Gavazzi Inc.
2PH S/START 220-400V 25A 110-400
RSGD4025E0VD200
ActiveCarlo Gavazzi Inc.
2PH S/START 220-400V 25A 110-400
Description
General part information
RSGD4025E0VD200
Supply Load
Technical Specifications
Parameters and characteristics for this part
| Specification | RSGD4025E0VD200 |
|---|---|
| Control / Drive Type | Soft Start, Stop |
| Current - Output | 25 A |
| Motor Type | AC Motor |
| Mounting Type | DIN Rail |
| Number of Motors | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Type | Module |
| Voltage - Load (Max) | 400 V |
| Voltage - Load (Min) | 220 V |
| Voltage - Supply (Maximum) | 400 VAC |
| Voltage - Supply (Minimum) | 110 VAC |
