YO0321500000G

Active

AMPHENOL ANYTEK

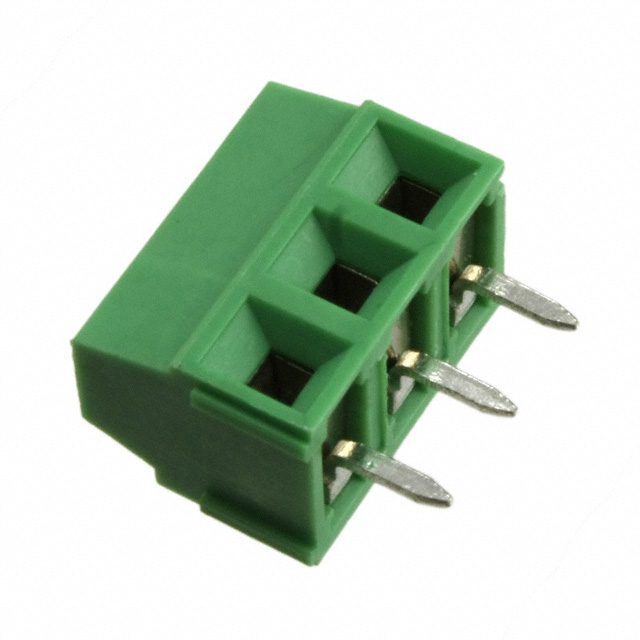

TERM BLK 3P SIDE ENT 3.81MM PCB

Search across all available documentation for this part.

Active

AMPHENOL ANYTEK

TERM BLK 3P SIDE ENT 3.81MM PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YO0321500000G	YO03 Series

Clamp Material - Plating	Copper Alloy - Nickel Plated	Brass - Nickel Plated, Copper Alloy - Nickel Plated
Color	Green	Blue, Green
Contact Material - Plating	Copper Alloy - Tin Plated	Copper Alloy - Tin Plated
Current	10 A	10 A
Features	Interlocking (Side)	Interlocking (Side)
Housing Material	Thermoplastic	Thermoplastic
Mating Orientation	Horizontal with Board	Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.15 in	0.15 in
Pitch [x]	3.81 mm	3.81 mm
Positions Per Level	3	3
Screw Material - Plating	Steel, Zinc Plated	Steel, Zinc Plated
Screw Thread	M2	M2
Torque - Screw	0.2 Nm	0.2 Nm
Torque - Screw	1.7 Lb-In	1.7 Lb-In
Voltage	300 V	300 V
Wire Gauge [Max]	24 AWG	24 AWG
Wire Gauge [Min]	16 AWG	16 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

TERM BLK 3P SIDE ENT 3.81MM PCB

Part	Clamp Material - Plating	Number of Levels	Wire Gauge [Min]	Wire Gauge [Max]	Features	Color	Pitch [x]	Pitch [x]	Wire Termination	Housing Material	Positions Per Level	Torque - Screw	Torque - Screw	Operating Temperature [Min]	Operating Temperature [Max]	Screw Material - Plating	Voltage	Mounting Type	Mating Orientation	Screw Thread	Current	Contact Material - Plating
AMPHENOL ANYTEK YO0321600000G	Brass - Nickel Plated	1	16 AWG	24 AWG	Interlocking (Side)	Blue	0.15 in	3.81 mm	Screw - Rising Cage Clamp	Thermoplastic	3	0.2 Nm	1.7 Lb-In	-40 °C	115 °C	Steel, Zinc Plated	300 V	Through Hole	Horizontal with Board	M2	10 A
AMPHENOL ANYTEK YO0321500000G	Copper Alloy - Nickel Plated	1	16 AWG	24 AWG	Interlocking (Side)	Green	0.15 in	3.81 mm	Screw - Rising Cage Clamp	Thermoplastic	3	0.2 Nm	1.7 Lb-In	-40 °C	115 °C	Steel, Zinc Plated	300 V	Through Hole	Horizontal with Board	M2	10 A	Copper Alloy - Tin Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Wire to Board Terminal Block Horizontal with Board 0.150" (3.81mm) Through Hole
