Description

General part information

AMPLIMITE HDE Series

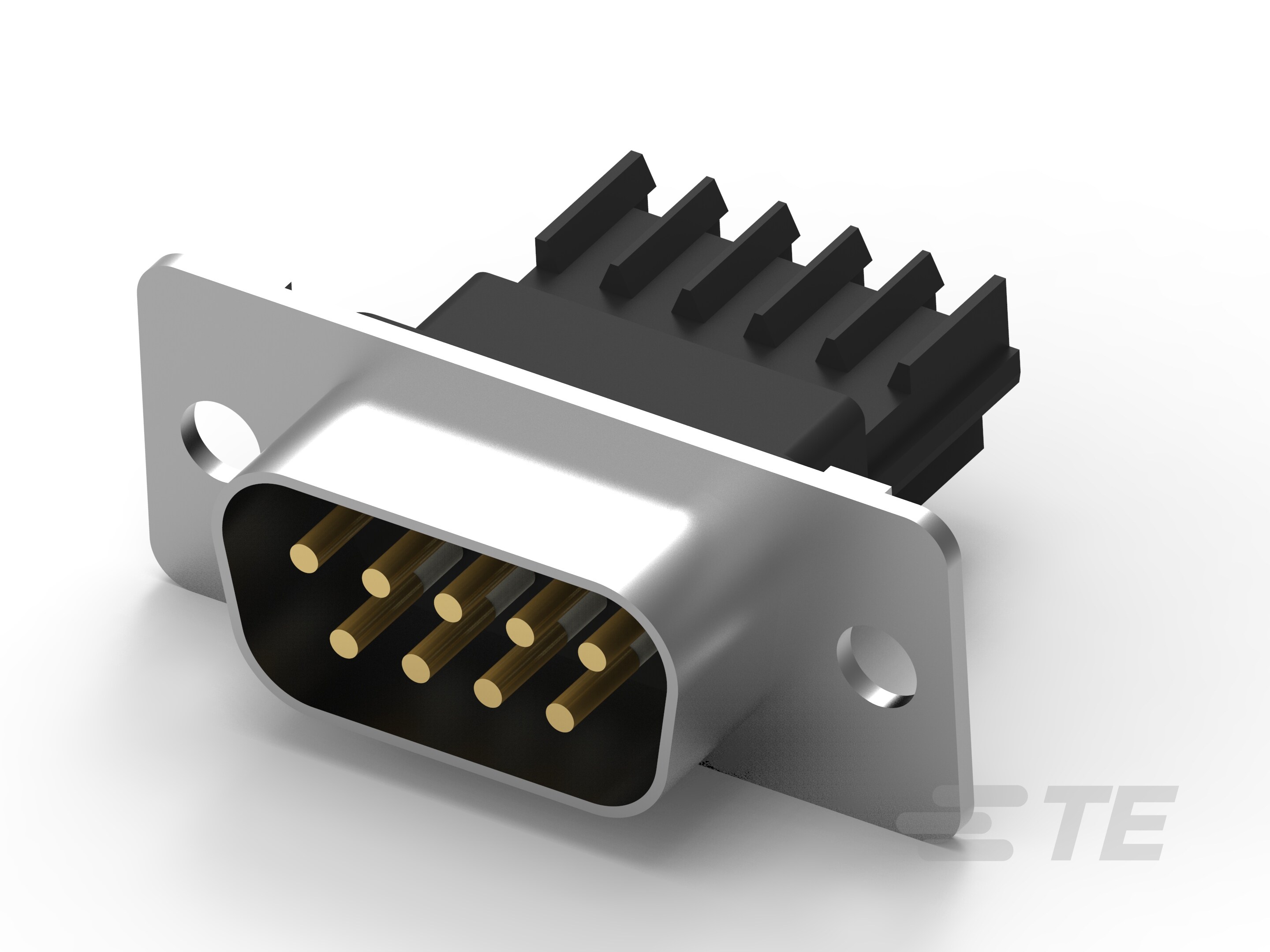

9 Position D-Shaped Connector, Plug, Wire-to-Wire, Cable Mount (Free-Hanging), 1 Shell Size, 1.38 mm [.054 in] Centerline, Wire & Cable, AMPLIMITE HDE

Technical Specifications

Parameters and characteristics for this part

Specification1-745492-8
ColorBlack
Connector LayoutDE, E
Connector StyleD-Sub
Connector TypeMale Pins, Plug
Contact FinishGold
Contact Finish Thickness0
Contact Finish ThicknessFlash
Contact Finish Thickness (string set options)Flash
Contact MaterialPhosphor Bronze
Contact TypeSignal
Current Rating0 A
Current RatingVaries by Wire Gauge
Dielectric MaterialThermoplastic, Glass Filled
FeaturesGrounding Indents
FinishTin Plated
Flange FeatureShell (Unthreaded), Housing
Material Flammability RatingUL94 V-0
Mounting TypeFree Hanging (In-Line)
Number of Positions9
Number of Rows2
Operating Temperature (Max)105 °C
Operating Temperature (Min)-55 °C
Shell MaterialSteel
Shell Size1
TerminationIDC, Discrete Wire
Voltage Rating250 V
Wire Gauge (AWG) (Max)26 AWG
Wire Gauge (AWG) (Min)22 AWG
