629W13W3140-4N3
ActiveEDAC Inc.

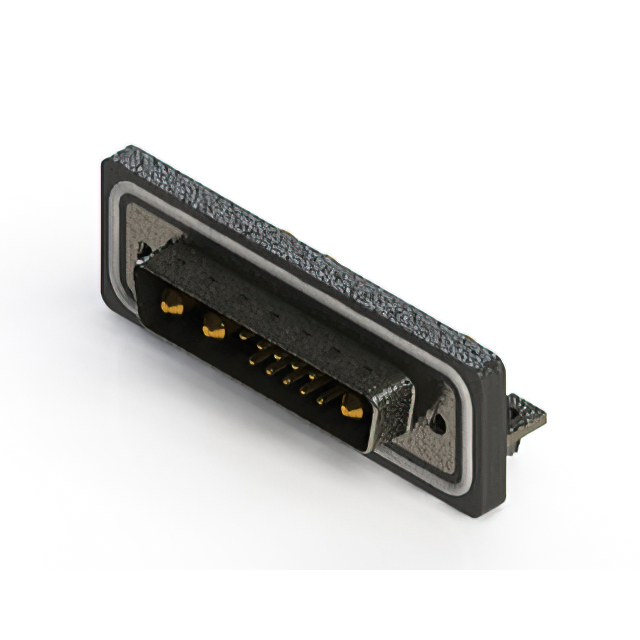

CONN D-SUB PLUG 13POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
629W13W3140-4N3
ActiveEDAC Inc.
CONN D-SUB PLUG 13POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 629W13W3140-4N3 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.127 µm |
| Contact Finish Thickness | 5 µin |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 40 A, 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Lock, Mounting Brackets, Grounding Indents, Shielded |
| Flange Feature | Housing/Shell (4-40) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions [custom] | 10 |
| Number of Positions [custom] | 3 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 13W3, 13C3, B, DB |
| Shell Size, Connector Layout | 3 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
629W13W Series
| Part | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Finish Thickness | Contact Finish Thickness | Dielectric Material | Contact Finish | Voltage Rating | Flange Feature | Number of Positions [custom] | Number of Positions [custom] | Connector Style | Contact Material | Mounting Type | Current Rating (Amps) | Contact Type | Features | Connector Type | Ingress Protection | Shell Material, Finish | Shell Size, Connector Layout | Shell Size, Connector Layout | Termination | Number of Rows | Current Rating (Amps) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | UL94 V-0 | -55 °C | 125 °C | Black | 0.127 µm | 5 µin | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 125 VDC | Housing/Shell (4-40) | 10 | 3 | Combo D-Sub | Copper Alloy | Panel Mount Right Angle Through Hole | 10A 5A | Signal and Power | Grounding Indents Mounting Brackets Shielded | Male Pins Plug | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 13C3 13W3 B DB | 3 | Solder | 2 | ||
EDAC Inc. | UL94 V-0 | -55 °C | 125 °C | Black | 0.38 µm | 15 µin | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 125 VDC | Housing/Shell (4-40) | 10 | 3 | Combo D-Sub | Copper Alloy | Panel Mount Right Angle Through Hole | Signal and Power | Board Lock Grounding Indents Mounting Brackets Shielded | Male Pins Plug | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 13C3 13W3 B DB | 3 | Solder | 2 | 5 A 40 A | ||
EDAC Inc. | UL94 V-0 | -55 °C | 125 °C | Black | 0.38 µm | 15 µin | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 125 VDC | Housing/Shell (M3) | 10 | 3 | Combo D-Sub | Copper Alloy | Panel Mount Right Angle Through Hole | Signal and Power | Grounding Indents Shielded | Male Pins Plug | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 13C3 13W3 B DB | 3 | Solder | 2 | 5 A 20 A | ||
EDAC Inc. | UL94 V-0 | -55 °C | 125 °C | Black | 0.127 µm | 5 µin | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 125 VDC | Housing/Shell (4-40) | 10 | 3 | Combo D-Sub | Copper Alloy | Panel Mount Right Angle Through Hole | Signal and Power | Board Lock Grounding Indents Mounting Brackets Shielded | Male Pins Plug | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 13C3 13W3 B DB | 3 | Solder | 2 | 5 A 40 A | ||
EDAC Inc. | UL94 V-0 | -55 °C | 125 °C | Black | 0.127 µm | 5 µin | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 125 VDC | Housing/Shell (M3) | 10 | 3 | Combo D-Sub | Copper Alloy | Panel Mount Right Angle Through Hole | Signal and Power | Grounding Indents Shielded | Male Pins Plug | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 13C3 13W3 B DB | 3 | Solder | 2 | 5 A 40 A | ||
EDAC Inc. | UL94 V-0 | -55 °C | 125 °C | Black | 0.76 Ám | 30 Áin | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 125 VDC | Housing/Shell (4-40) | 10 | 3 | Combo D-Sub | Copper Alloy | Panel Mount Right Angle Through Hole | Signal and Power | Grounding Indents Mounting Brackets Shielded | Male Pins Plug | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 13C3 13W3 B DB | 3 | Solder | 2 | 5 A 20 A | ||
EDAC Inc. | UL94 V-0 | -55 °C | 125 °C | Black | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 125 VDC | Housing/Shell (M3) | 10 | 3 | Combo D-Sub | Copper Alloy | Through Hole Right Angle | Signal and Power | Grounding Indents Mounting Brackets Shielded | Male Pins Plug | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 13C3 13W3 B DB | 3 | Solder | 2 | 5 A 20 A | Flash | |||
EDAC Inc. | UL94 V-0 | -55 °C | 125 °C | Black | 0.38 µm | 15 µin | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 125 VDC | Housing/Shell (4-40) | 10 | 3 | Combo D-Sub | Copper Alloy | Panel Mount Right Angle Through Hole | Signal and Power | Grounding Indents Mounting Brackets Shielded | Male Pins Plug | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 13C3 13W3 B DB | 3 | Solder | 2 | 5 A 20 A | ||
EDAC Inc. | UL94 V-0 | -55 °C | 125 °C | Black | 0.38 µm | 15 µin | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 125 VDC | Housing/Shell (M3) | 10 | 3 | Combo D-Sub | Copper Alloy | Panel Mount Right Angle Through Hole | 10A 5A | Signal and Power | Board Lock Filter Grounding Indents Mounting Brackets Shielded | Male Pins Plug | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 13C3 13W3 B DB | 3 | Solder | 2 | ||
EDAC Inc. | UL94 V-0 | -55 °C | 125 °C | Black | 0.76 Ám | 30 Áin | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 125 VDC | Housing/Shell (M3) | 10 | 3 | Combo D-Sub | Copper Alloy | Panel Mount Right Angle Through Hole | Signal and Power | Grounding Indents Shielded | Male Pins Plug | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 13C3 13W3 B DB | 3 | Solder | 2 | 5 A 20 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 200 | $ 19.65 | |
Description
General part information
629W13W Series
13 (10 + 3 Power) Position D-Sub, Combo Plug, Male Pins Connector
