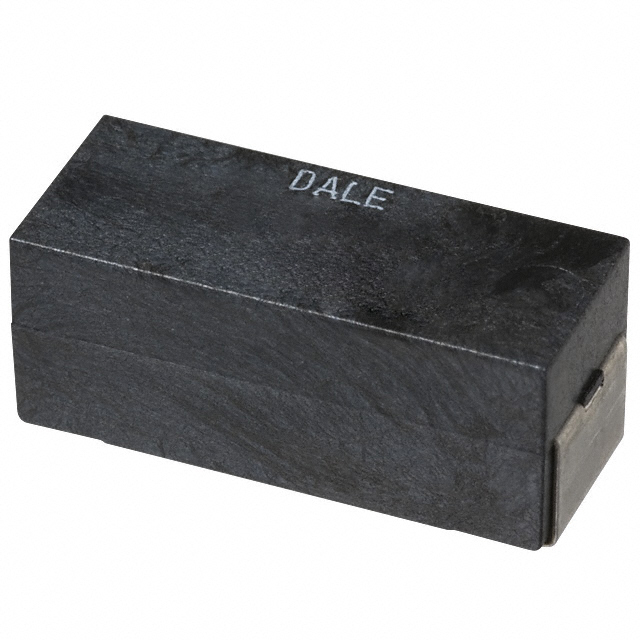

Specification	WSC69271K000FEA

Composition	Wirewound
Features	Automotive AEC-Q200
Height - Seated (Max)	0.295 in
Number of Terminations	2
Operating Temperature (Max)	275 °C
Operating Temperature (Min)	-65 °C
Package / Case	6927 J-Lead
Package Name	6927
Power (Watts)	3 W
Resistance	1 kOhm
Size / Dimension Length	0.69 in
Size / Dimension Width	0.275 "
Supplier Device Package	6927
Temperature Coefficient	20 ppm/¯C
Tolerance	1 %

WSC Series

Part	Supplier Device Package	Package Name	Composition	Package / Case	Temperature Coefficient	Tolerance	Size / Dimension Length	Size / Dimension Width	Operating Temperature (Max)	Operating Temperature (Min)	Height - Seated (Max)	Power (Watts)	Resistance	Number of Terminations	Features	Ratings
Vishay Dale WSC6927100R0FEA	6927	6927	Wirewound	6927 J-Lead	20 ppm/¯C	1 %	0.69 in	0.275 "	275 °C	-65 °C	0.295 in	3 W	100 Ohms	2	Automotive AEC-Q200

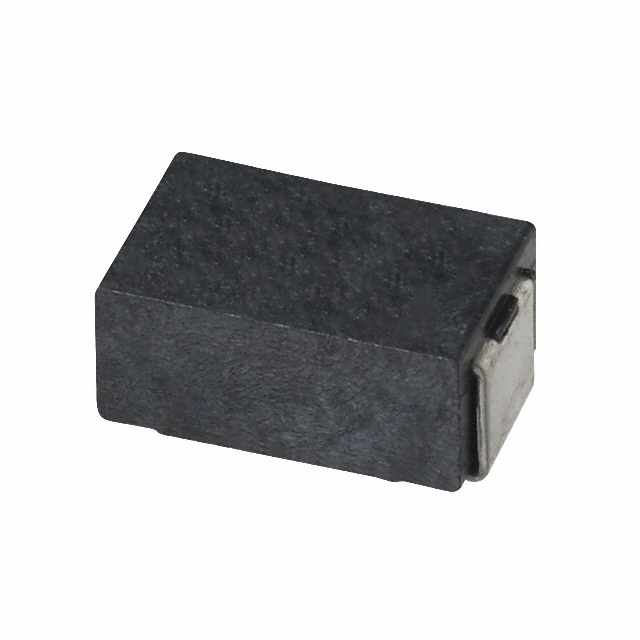

Vishay Dale WSC00021R000FEB		4527	Wirewound	4527 J-Lead	50 ppm/°C	1 %	0.455 "	0.275 "	275 °C	-65 °C	0.177 in	2 w	1 Ohm	2	Automotive AEC-Q200 Pulse Withstanding
Vishay Dale WSC4527100R0FEB		4527	Wirewound	4527 J-Lead	20 ppm/¯C	1 %	0.455 "	0.275 "	275 °C	-65 °C	0.177 in	2 w	100 Ohms	2	Automotive AEC-Q200 Pulse Withstanding
Vishay Dale WSC251515R00FEB		2515	Wirewound	2515 J-Lead	50 ppm/°C	1 %	0.25 in	0.15 in	275 °C	-65 °C	0.125 in	1 W	15 Ohm	2	Automotive AEC-Q200	AEC-Q200
Vishay Dale WSC2515200R0FEB		2515	Wirewound	2515 J-Lead	20 ppm/¯C	1 %	0.25 in	0.15 in	275 °C	-65 °C	0.125 in	1 W	200 Ohm	2	Automotive AEC-Q200 Pulse Withstanding
Vishay Dale WSC2515R3010FEB		2515	Wirewound	2515 J-Lead		1 %	0.25 in	0.15 in	275 °C	-65 °C	0.125 in	1 W	301 mOhms	2	Automotive AEC-Q200 Pulse Withstanding
Vishay Dale WSC000210R00FTA		4527	Wirewound	4527 J-Lead	20 ppm/¯C	1 %	0.455 "	0.275 "	275 °C	-65 °C	0.177 in	2 w	10 Ohms	2	Automotive AEC-Q200 Pulse Withstanding
Vishay Dale WSC2515100R0FTA		2515	Wirewound	2515 J-Lead	20 ppm/¯C	1 %	0.25 in	0.15 in	275 °C	-65 °C	0.125 in	1 W	100 Ohms	2	Automotive AEC-Q200 Pulse Withstanding
Vishay Dale WSC2515R5000FEA		2515	Wirewound	2515 J-Lead	90 ppm/°C	1 %	0.25 in	0.15 in	275 °C	-65 °C	0.125 in	1 W	0.5 Ohm	2	Automotive AEC-Q200	AEC-Q200
Vishay Dale WSC69277R500FEA	6927	6927	Wirewound	6927 J-Lead	50 ppm/°C	1 %	0.69 in	0.275 "	275 °C	-65 °C	0.295 in	3 W	7.5 Ohm	2	Automotive AEC-Q200	AEC-Q200

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

WSC69271K000FEA | Datasheet
