PDTC114ET215
ActiveNXP USA Inc.
TRANS PREBIAS NPN 50V SOT23-3
PDTC114ET215
ActiveNXP USA Inc.
TRANS PREBIAS NPN 50V SOT23-3
Description
General part information
PDTC114ET215
Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50 V 100 mA 230 MHz 250 mW Surface Mount SOT23-3 (TO-236)
Technical Specifications
Parameters and characteristics for this part
| Specification | PDTC114ET215 |
|---|---|
| Current - Collector (Ic) (Max) | 0.1 mA |
| Current - Collector Cutoff (Max) | 1 µA |
| DC Current Gain (hFE) (Min) | 30 |
| Frequency - Transition | 230 MHz |
| Mounting Type | Surface Mount |

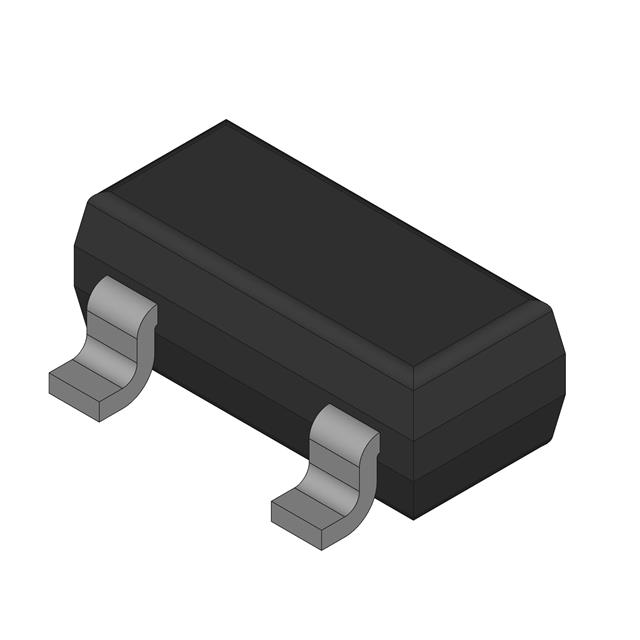

| Package / Case | TO-236-3, SOT-23-3, SC-59 |
| Package Name | SOT23-3 (TO-236) |
| Power - Max | 250 mW |
| Resistor - Base (R1) Resistance | 10 kOhm |
| Resistor - Emitter Base (R2) | 10 kOhms |
| Resistors Included | R1, R2 |
| Transistor Type | Pre-Biased, NPN |
| Vce Saturation (Max) | 150 mV |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
