1431-29BK3

Active

Hammond Manufacturing

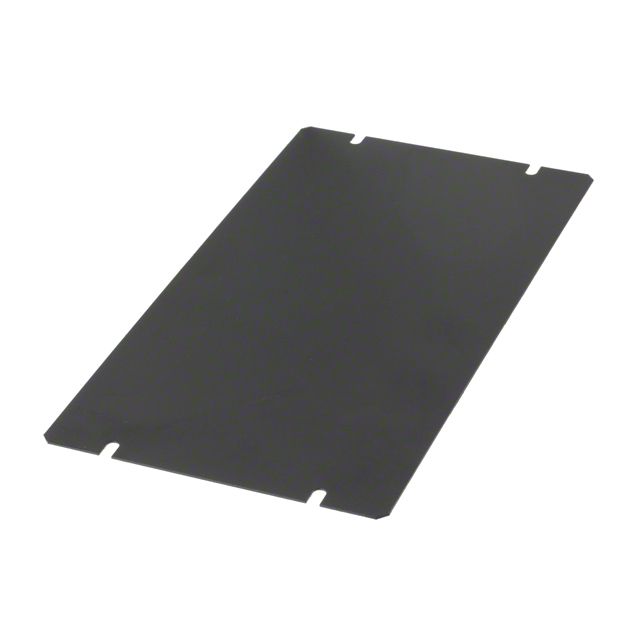

COVER FOR CHASSIS 12X10" BLK

Search across all available documentation for this part.

Active

Hammond Manufacturing

COVER FOR CHASSIS 12X10" BLK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Metal, Steel Cover, Lid 12.000" L x 10.000" W x 0.032" H (304.80mm x 254.00mm x 0.81mm) Black

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1431-29BK3	1431 Series

Color	Black	Gray, Black
For Use With/Related Products	1441 Series	1441 Series
Material	Metal, Steel	Metal, Steel
Size / Dimension	-	127 - 203.2 mm
Size / Dimension	-	0.81 mm
Size / Dimension [x]	304.8 mm	101.6 - 431.8 mm
Size / Dimension [x]	12 in	4 - 17 in
Size / Dimension [y]	254 mm	101.6 - 355.6 mm
Size / Dimension [y]	10 in	4 - 14 "
Size / Dimension [z]	0.81 mm	0.81 - 1.02 mm
Size / Dimension [z]	0.032 in	0.032 - 0.04 in
Type	Cover, Lid	Cover, Lid

COVER FOR CHASSIS 6X4" GRY

Part	Type	Color	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	For Use With/Related Products	Material
Hammond Manufacturing 1431-8	Cover, Lid	Gray	0.032 in	4 "	152.4 mm	6 in	101.6 mm	0.81 mm	1441 Series	Metal, Steel
Hammond Manufacturing 1431-12	Cover, Lid	Gray	0.032 in	5 "	177.8 mm	7 "	127 mm	0.81 mm	1441 Series	Metal, Steel
Hammond Manufacturing 1431-34	Cover, Lid	Gray	0.04 in	12 "	431.8 mm	17 in	304.8 mm	1.02 mm	1441 Series	Metal, Steel
Hammond Manufacturing 1431-38	Cover, Lid	Gray	0.04 in	14 in	431.8 mm	17 in	355.6 mm	1.02 mm	1441 Series	Metal, Steel
Hammond Manufacturing 1431-38BK3	Cover, Lid	Black	0.04 in	14 in	431.8 mm	17 in	355.6 mm	1.02 mm	1441 Series	Metal, Steel
Hammond Manufacturing 1431-20	Cover, Lid	Gray	0.032 in	4 "	431.8 mm	17 in	101.6 mm	0.81 mm	1441 Series	Metal, Steel
Hammond Manufacturing 1431-22	Cover, Lid	Gray	0.032 in	8 in	304.8 mm	12 in	203.2 mm	0.81 mm	1441 Series	Metal, Steel
Hammond Manufacturing 1431-12BK3	Cover, Lid	Black	0.032 in	5 "	177.8 mm	7 "	127 mm	0.81 mm	1441 Series	Metal, Steel
Hammond Manufacturing 1431-29	Cover, Lid	Gray	0.032 in	10 in	304.8 mm	12 in	254 mm	0.81 mm	1441 Series	Metal, Steel
Hammond Manufacturing 1431-10BK3	Cover, Lid	Black	0.032 in	4 "	203.2 mm	8 "	101.6 mm	0.81 mm	1441 Series	Metal, Steel
