FCN2416A154K-D4
ObsoleteCornell Dubilier Knowles

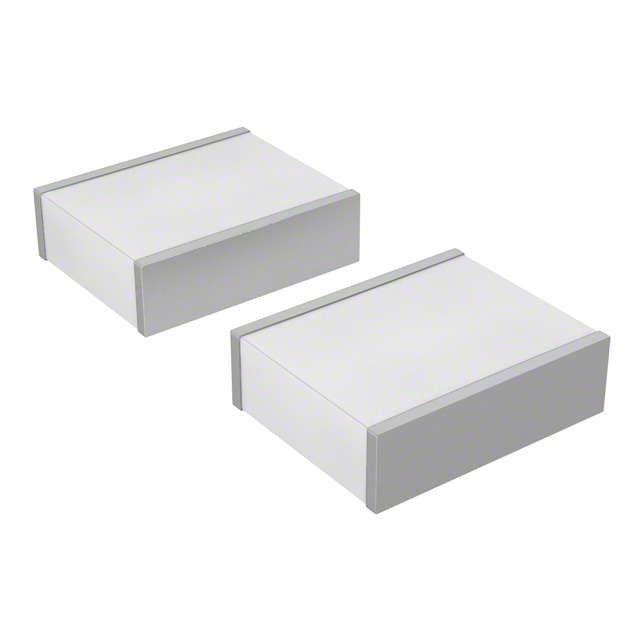

CAP FILM 0.15UF 10% 100VDC 2416
FCN2416A154K-D4
ObsoleteCornell Dubilier Knowles
CAP FILM 0.15UF 10% 100VDC 2416
Description
General part information
FCN2416A154K-D4
0.15 µF Film Capacitor 63V 100V Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked 2416 (6041 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | FCN2416A154K-D4 |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.15 µF |
| Dielectric Material | Polyester, Metallized - Stacked, Polyethylene Naphthalate (PEN) |
| Height - Seated (Max) | 0.118 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2416 (6041 Metric) |
| Size / Dimension Length | 0.236 in |
| Size / Dimension Width | 0.161 in |
| Termination | Solder Pads |
| Tolerance | 10 % |
| Voltage Rating - AC | 63 V |
| Voltage Rating - DC | 100 V |
