Description
General part information

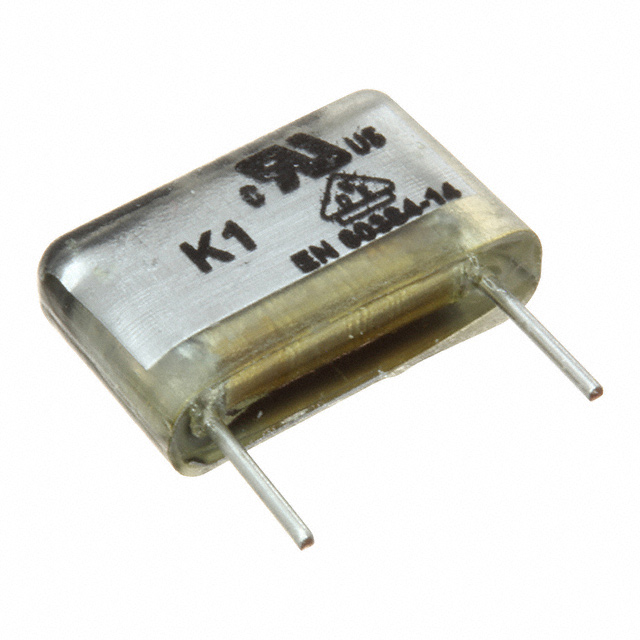

MPX12W1470FB00MD00
4700 pF Film Capacitor 300V 730V Paper, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | MPX12W1470FB00MD00 |
|---|---|
| Applications | RFI Suppression, EMI |
| Capacitance | 4700 pF |
| Dielectric Material | Metallized, Paper |
| Features | Low ESR |
| Height - Seated (Max) | 0.394 in |
| Lead Spacing | 0.394 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Ratings | X1 |
| Size / Dimension Length | 0.531 in |
| Size / Dimension Width | 0.197 in |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage Rating - AC | 300 V |
| Voltage Rating - DC | 730 V |
