FMCA2068-50CM
ActiveFairview Microwave
CBL ASSY 4.3-10PLUG-7/16 DINJACK
FMCA2068-50CM
ActiveFairview Microwave
CBL ASSY 4.3-10PLUG-7/16 DINJACK
Description
General part information
FMCA2068-50CM

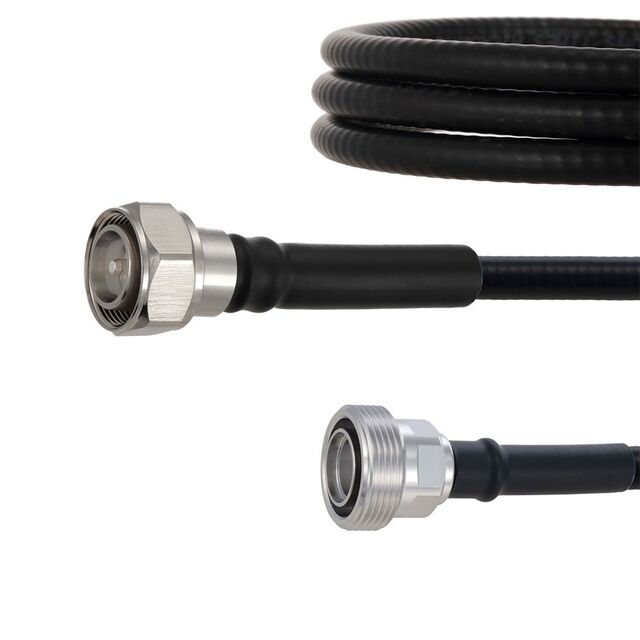

Cable Assembly Coaxial 4.3/10 to 7/16 DIN SPF-375 19.69" (500.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2068-50CM |
|---|---|
| 1st Connector | 4.3/10 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 4.3 mm |
| 1st Connector Dimension (2) | 10 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size (Dimension 1) | 4.3, 4.3 mm |
| 1st Connector Size (Dimension 2) | 10, 10 mm |
| 1st Connector Type | Plug |
| 1st Contact Gender | Male |
| 2nd Connector | 7/16 Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | SPF |
| Cable Type Size | 375 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 19.69 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | 4.3/10 to 7/16 DIN |
