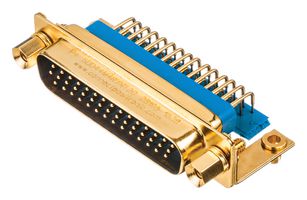

SDD26M0000G/AA
ActiveMcGill Microwave Systems
HD D SUB HOUSING, PLUG, 26POS, DA ROHS COMPLIANT: YES
SDD26M0000G/AA
ActiveMcGill Microwave Systems
HD D SUB HOUSING, PLUG, 26POS, DA ROHS COMPLIANT: YES
Description
General part information
SDD26M0000G/AA
Plug for Male Contacts Housing D-Sub, High Density Connector 26 Position
Technical Specifications
Parameters and characteristics for this part
| Specification | SDD26M0000G/AA |
|---|---|
| Color | Blue |
| Connector Layout | DA, A, High Density |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug for Male Contacts |
| Contact Type | Signal |
| Dielectric Material | Glass Filled, Polyester |
| Features | Shielded |
| Finish | Gold Plated |
| Flange Feature | Shell (Unthreaded), Housing |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Primary Material | Metal |
| Shell Material | Brass |
| Shell Size | 2 |
