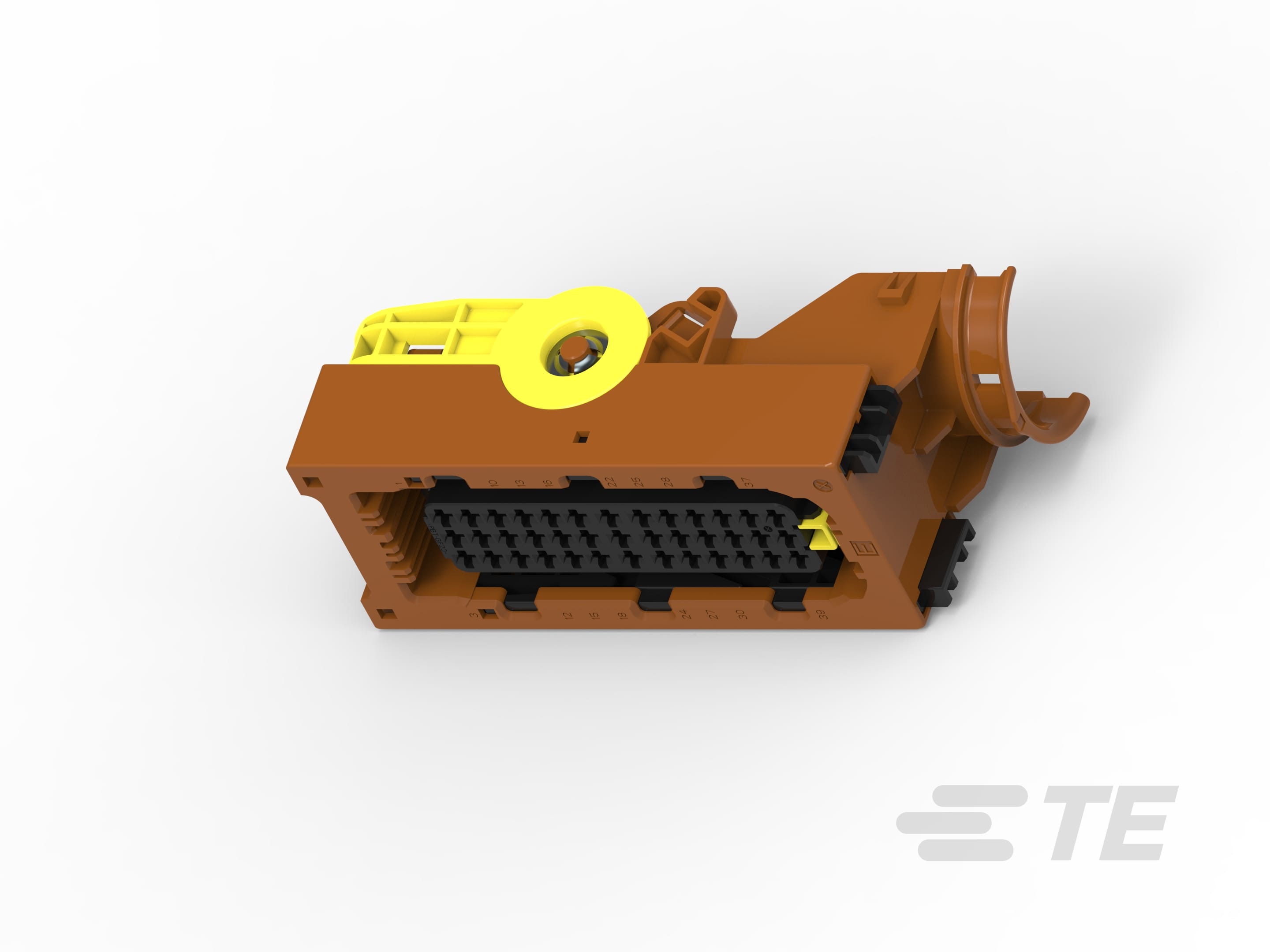

Specification	6-1718321-3

Color	Brown
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	IP67
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	39
Number of Rows	3
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Pitch	0.197 in
Row Spacing	0.217 in

LEAVYSEAL Series

...

Part	Mounting Type	Number of Positions	Contact Type	Contact Termination	Insulation Material	Color	Features	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Pitch	Number of Rows	Fastening Type	For Use With/Related Products	Accessory Type	Row Spacing	Note
TE Connectivity AMP Connectors 2358801-1	Free Hanging (In-Line)	62	Tab	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Black	Sealed	Plug
TE Connectivity AMP Connectors 2378366-2	Free Hanging (In-Line)	58	Tab	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Black		Receptacle	120 °C	-40 °C	0.197 in	8	Lever Lock
TE Connectivity AMP Connectors 1718328-1														LEAVYSEAL Series	Locking Slide
TE Connectivity AMP Connectors 3-1823498-1	Free Hanging (In-Line) Right Angle	62	Female Socket	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Blue	IP67	Receptacle	120 °C	-40 °C		4	Lever Lock			0.1 in
TE Connectivity AMP Connectors 5-1718323-1	Free Hanging (In-Line)	39	Tab	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Green	Sealed	Plug	120 °C	-40 °C	0.197 in	3				0.217 in	Contacts Not Included
TE Connectivity AMP Connectors 1-2366619-2	Free Hanging (In-Line) Right Angle	62	Female Socket	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Blue	Sealed	Receptacle	120 °C	-40 °C			Lever Lock			0.157 in
TE Connectivity AMP Connectors 1-2328352-2	Free Hanging (In-Line)	25	Female Socket	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Black	Terminal Position Lock (TPA)	Receptacle	120 °C	-40 °C		4	Lever Lock			0.236 in
TE Connectivity AMP Connectors 3-1418883-1	Free Hanging (In-Line)	62	Female Socket	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Blue		Receptacle	120 °C	-40 °C		4
TE Connectivity AMP Connectors 3-1534126-1	Free Hanging (In-Line)	15	Female Socket	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Blue		Receptacle	120 °C	-40 °C	0.197 in	3				0.217 in
TE Connectivity AMP Connectors 3-2112162-1	Panel Mount	21	Tab	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Blue	IP67	Plug	120 °C	-40 °C	0.197 in	2	Push-Pull			0.236 in
