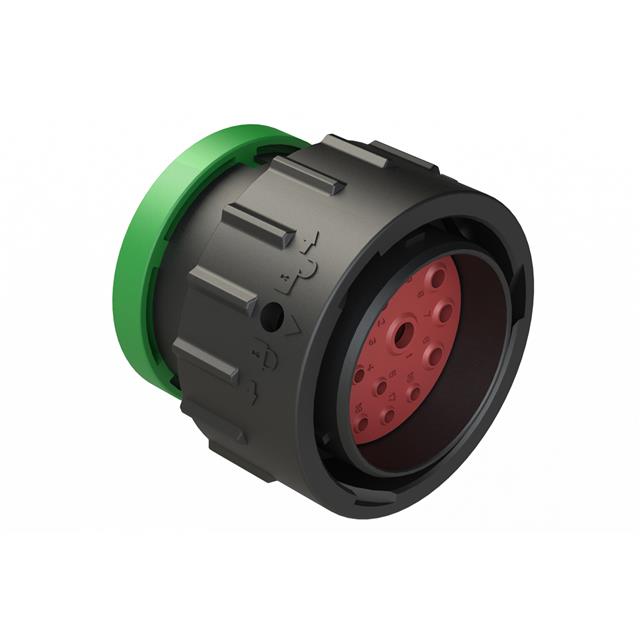

Specification	AHDP06-24-18PN-BRA

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	8, 16, 12
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP67, IP69K
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	18
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Thermoplastic
Shell Size - Insert Length	24 mm
Shell Size - Insert Width	18 mm
Shielding	Unshielded
Type	For Male Pins

AHDP06 Series

...

Part	Position Types	Number of Positions	Fastening Type	Contact Type	Orientation	Shell Size - Insert Length	Shell Size - Insert Width	Shell Material	Contact Size	Housing Color	Shielding	Type	Mounting Type	Connector Type	Ingress Protection IP Rating	Ingress Protection Description	Operating Temperature (Max)	Operating Temperature (Min)	Note	Contact Shape	Insert Material	Primary Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Features
McGill Microwave Systems AHDP06-24-07SN-WTACL22	Radsok	7	Bayonet Lock	Crimp	Keyed	24 mm	7 mm	Thermoplastic	4 16	Black	Unshielded	For Female Sockets	Free Hanging (In-Line)	Plug Housing	IP67 IP69K	Dust Tight Water Resistant Waterproof	125 °C	-55 °C	Contacts Not Included	Circular	Thermoplastic
McGill Microwave Systems AHDP06-24-31SR-STA		31	Bayonet Lock	Crimp	Keyed			Thermoplastic	16 S	Black	Unshielded	For Female Sockets	Free Hanging (In-Line)	Plug Housing	IP68 IP69K	Dust Tight Water Resistant Waterproof	125 °C	-55 °C	Contacts Not Included	Circular	Thermoplastic	Plastic	31	24	Coupling Nut
McGill Microwave Systems AHDP06-24-19PN-SRA		19	Bayonet Lock	Crimp	Keyed	24 mm	19 mm	Thermoplastic	12 16	Black	Unshielded	For Male Pins	Free Hanging (In-Line)	Plug Housing	IP67 IP69K	Dust Tight Water Resistant Waterproof	125 °C	-55 °C	Contacts Not Included	Circular	Thermoplastic				Coupling Nut
McGill Microwave Systems AHDP06-18-21SN-WTA	Radsok	21	Bayonet Lock	Crimp	Keyed			Thermoplastic	20	Black	Unshielded	For Female Sockets	Free Hanging (In-Line)	Plug Housing	IP67 IP69K	Dust Tight Water Resistant Waterproof	125 °C	-55 °C	Contacts Not Included	Circular	Thermoplastic		21	18	Coupling Nut
McGill Microwave Systems AHDP06-24-19SN-STA		19	Bayonet Lock	Crimp	Keyed	24 mm	19 mm	Thermoplastic	12 16	Black	Unshielded	For Female Sockets	Free Hanging (In-Line)	Plug Housing	IP68 IP69K	Dust Tight Water Resistant Waterproof	125 °C	-55 °C	Contacts Not Included	Circular	Thermoplastic	Plastic
McGill Microwave Systems AHDP06-24-31PR-SRA		31	Bayonet Lock	Crimp	Keyed			Thermoplastic	16 S	Black	Unshielded	For Male Pins	Free Hanging (In-Line)	Plug Housing	IP67 IP69K	Dust Tight Water Resistant Waterproof	125 °C	-55 °C	Contacts Not Included	Circular	Thermoplastic		31	24	Coupling Nut
McGill Microwave Systems AHDP06-24-21SN-SRA		21	Bayonet Lock	Crimp	Keyed	24 mm	21 mm	Thermoplastic	12 16	Black	Unshielded	For Female Sockets	Free Hanging (In-Line)	Plug Housing	IP67 IP69K	Dust Tight Water Resistant Waterproof	125 °C	-55 °C	Contacts Not Included	Circular	Thermoplastic				Coupling Nut
McGill Microwave Systems AHDP06-24-21SN-WTA	Radsok	21	Bayonet Lock	Crimp	Keyed	24 mm	21 mm	Thermoplastic	12 16	Black	Unshielded	For Female Sockets	Free Hanging (In-Line)	Plug Housing	IP67 IP69K	Dust Tight Water Resistant Waterproof	125 °C	-55 °C	Contacts Not Included	Circular	Thermoplastic				Coupling Nut
McGill Microwave Systems AHDP06-18-14PN-WTA	Radsok	14	Bayonet Lock	Crimp	Keyed	18 mm	14 mm	Thermoplastic	16 S	Black	Unshielded	For Male Pins	Free Hanging (In-Line)	Plug Housing	IP67 IP69K	Dust Tight Water Resistant Waterproof	125 °C	-55 °C	Contacts Not Included	Circular	Thermoplastic				Coupling Nut
McGill Microwave Systems AHDP06-18-14SN-SRA		14	Bayonet Lock	Crimp	Keyed	18 mm	14 mm	Thermoplastic	16 S	Black	Unshielded	For Female Sockets	Free Hanging (In-Line)	Plug Housing	IP67 IP69K	Dust Tight Water Resistant Waterproof	125 °C	-55 °C	Contacts Not Included	Circular	Thermoplastic				Coupling Nut
