RPL-10-CT
ActiveNON ISOLATED POL DC/DC CONVERTER, ITE, INDUSTRIAL & HOUSEHOLD, MODULE, 50 W, 600 MV, 5.5 V, 10 A
RPL-10-CT
ActiveNON ISOLATED POL DC/DC CONVERTER, ITE, INDUSTRIAL & HOUSEHOLD, MODULE, 50 W, 600 MV, 5.5 V, 10 A
Description
General part information

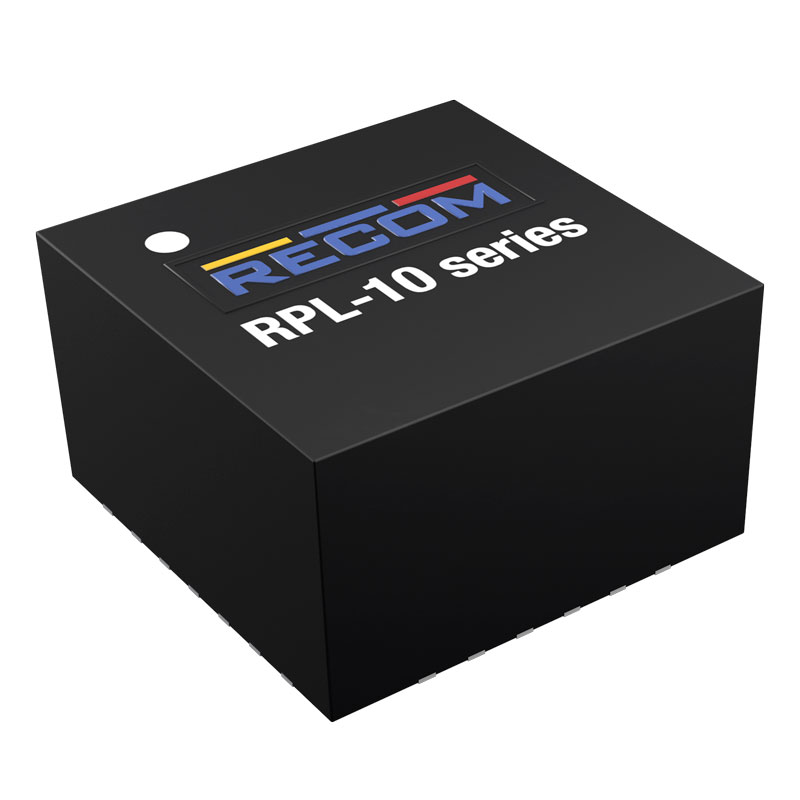

RPL-10-CT
RPL-10-CT is a RPL-10 series 10A buck converter with integrated inductor. The input range is from 4.0 to 16VDC, allowing both 5V and 12V supply rails to be used. The output voltage can be set with two resistors in the range from 0.6V up to 5.5V. The output is fully protected against continuous short-circuit, overload, under-voltage or over-temperature faults. A PG output and EN input allow easy power sequencing. Its high output current capability, small size, light load pulse skipping and fast transient regulation makes the device ideal for FPGAs, imaging systems, distributed power architectures, portable equipment in telecom as well as industrial applications. Typical applications are industrial and automation, building and home automation, energy, datacom and telecom, infrastructure.
Technical Specifications
Parameters and characteristics for this part
| Specification | RPL-10-CT |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 10 A |
| Efficiency | 94 % |
| Features | Adjustable Output |
| Mounting Type | Wettable Flank, Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 29-PowerBFLGA Module |
| Package Length | 7 mm |
| Package Name | 29-LGA |
| Package Width | 7 mm |
| Power (Watts) | 55 W |
| Size / Dimension Height | 0.17 in |
| Size / Dimension Length | 0.28 in |
| Size / Dimension Width | 0.28 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 16 V |
| Voltage - Input (Min) | 4 V |
| Voltage - Output 1 (Max) | 5.5 V |
| Voltage - Output 1 (Min) | 0.6 V |
